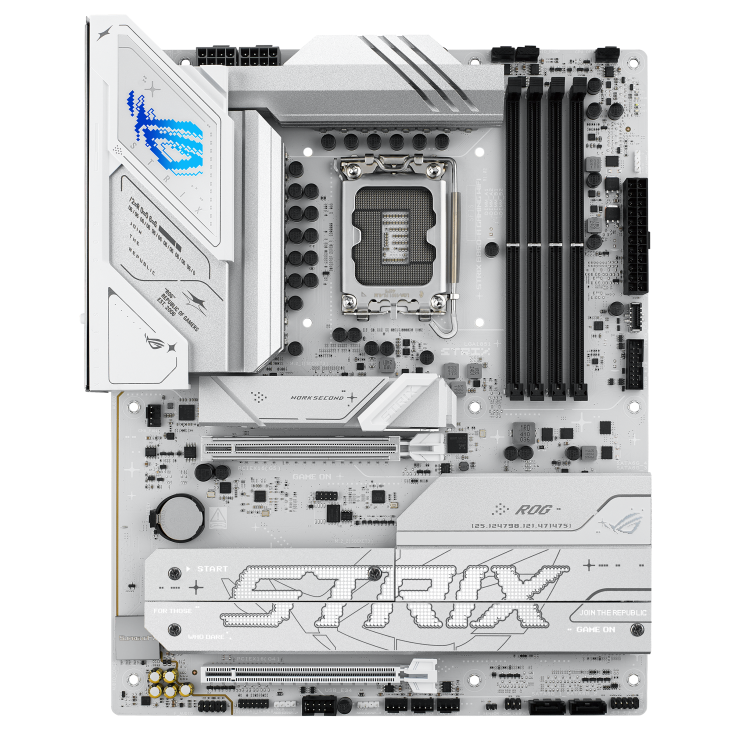

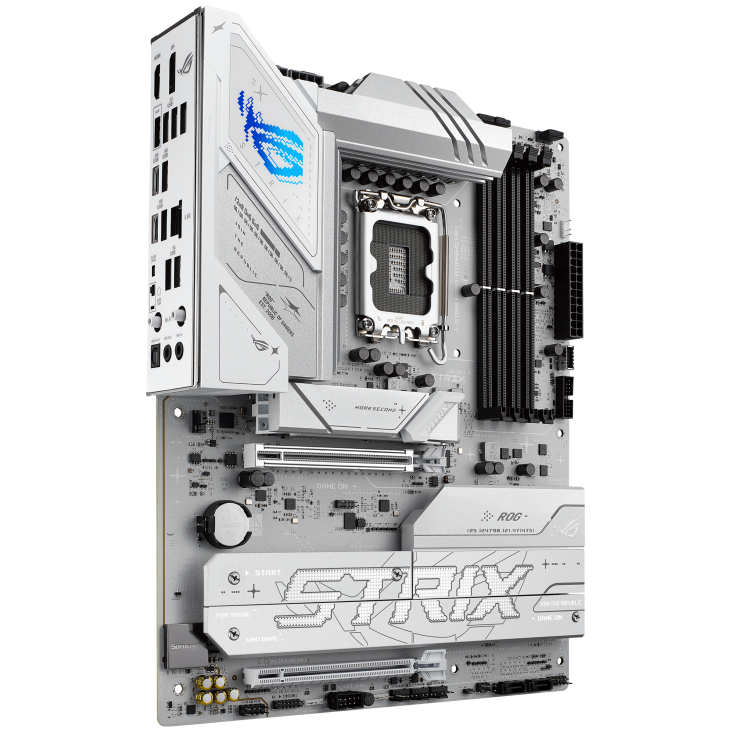

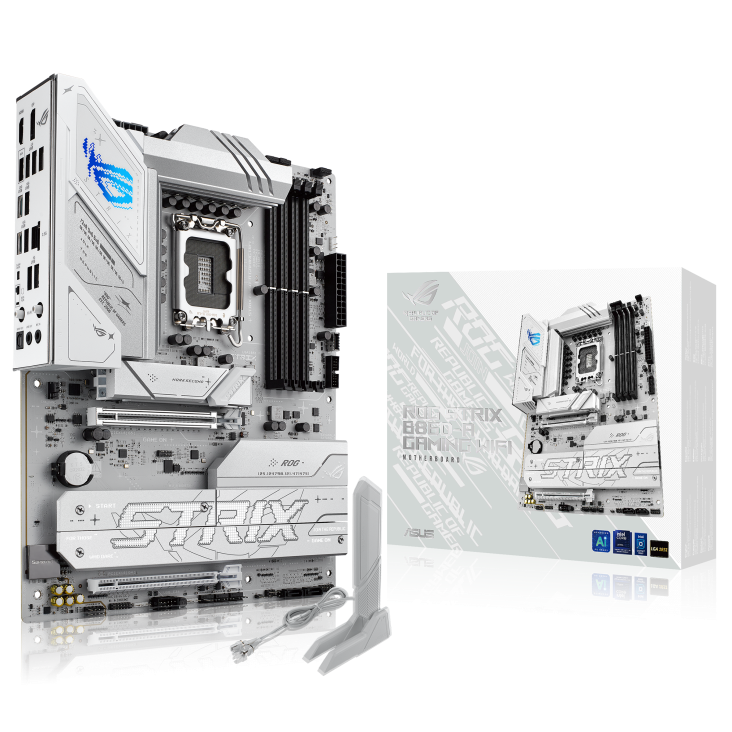

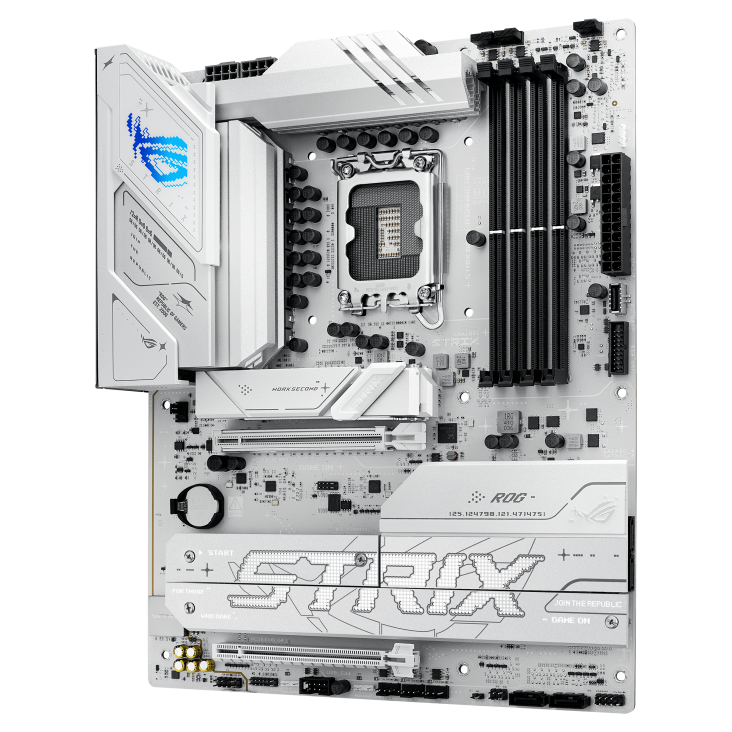

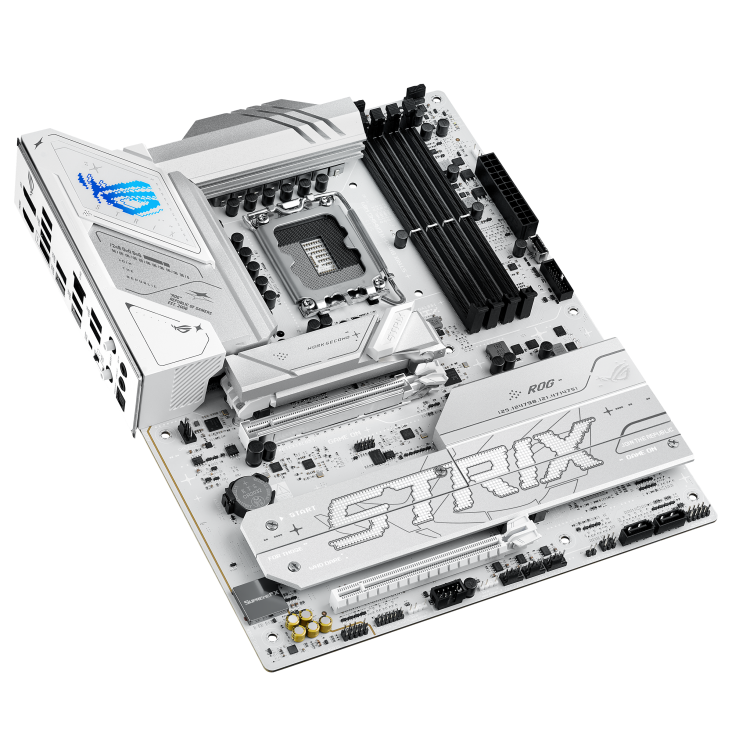

ASUS ROG STRIX B860-A GAMING WIFI

The ASUS ROG STRIX B860-A GAMING WIFI is a high-performance ATX motherboard designed for Intel Core Ultra processors. It combines strong power delivery, fast DDR5 memory, next-generation connectivity, and the distinctive ROG Strix design. Therefore, it is a great foundation for modern gaming PCs and powerful desktop builds.

Built on the Intel B860 chipset, the motherboard uses the LGA1851 socket and supports Intel Core Ultra Processors Series 2. In addition, its robust power solution with 14+1+2+1 power stages helps provide stable power for demanding workloads.

For memory, the board features four DDR5 DIMM slots with support for up to 256GB. Moreover, memory speeds can reach 8600+ MT/s through overclocking, with support for Intel XMP and ASUS Enhanced Memory Profile III.

Storage is also well equipped with four M.2 slots and four SATA 6Gb/s ports. The primary M.2 slot supports PCIe 5.0 x4, while the remaining M.2 slots provide PCIe 4.0 connectivity. As a result, you have plenty of flexibility for fast NVMe storage and additional drives.

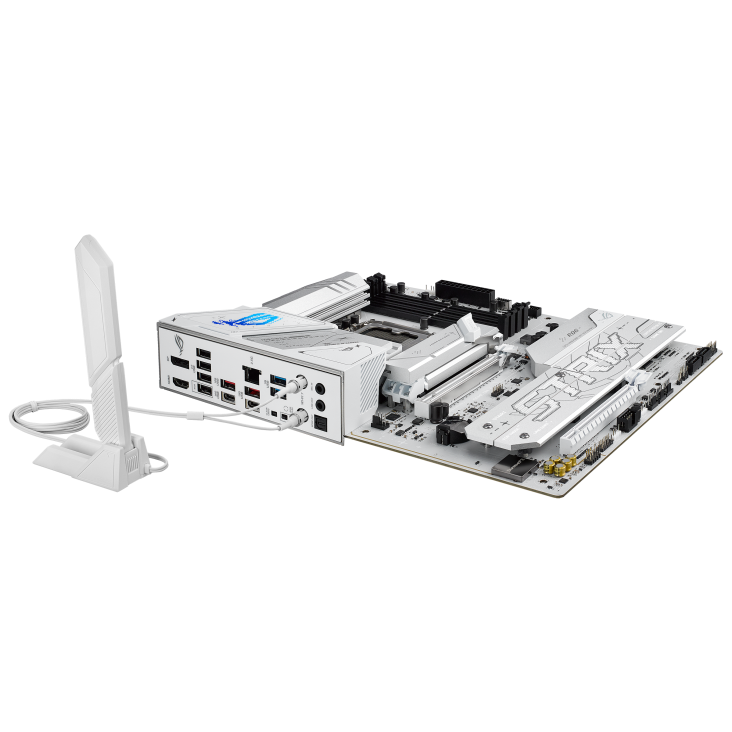

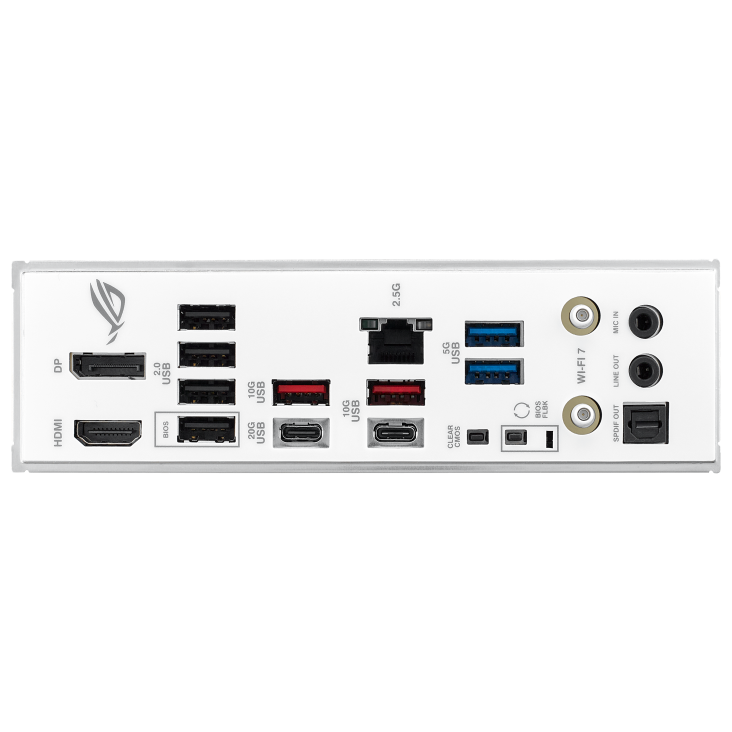

For networking, the motherboard includes Wi-Fi 7, Bluetooth 5.4, and Intel 2.5Gb Ethernet. Furthermore, the rear I/O includes a USB4 20Gbps Type-C port, USB 10Gbps ports, DisplayPort, HDMI, and optical S/PDIF.

The board also supports PCIe 5.0 x16 for modern graphics cards and features Aura Sync RGB lighting. Overall, the ROG STRIX B860-A GAMING WIFI delivers a strong combination of performance, connectivity, expansion, and premium gaming features.

Key Specifications

• Socket: Intel LGA1851
• Chipset: Intel B860
• Form Factor: ATX
• Memory: 4 × DDR5 DIMM, up to 256GB
• Memory Speed: Up to 8600+ MT/s (OC)
• Expansion: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 (x4)
• Storage: 4 × M.2, 4 × SATA 6Gb/s
• Networking: Wi-Fi 7, 2.5Gb Ethernet, Bluetooth 5.4
• USB: USB4 20Gbps Type-C, USB 10Gbps
• Audio: Realtek ALC1220P 7.1 Surround Sound
• Lighting: Aura Sync RGB
