Description

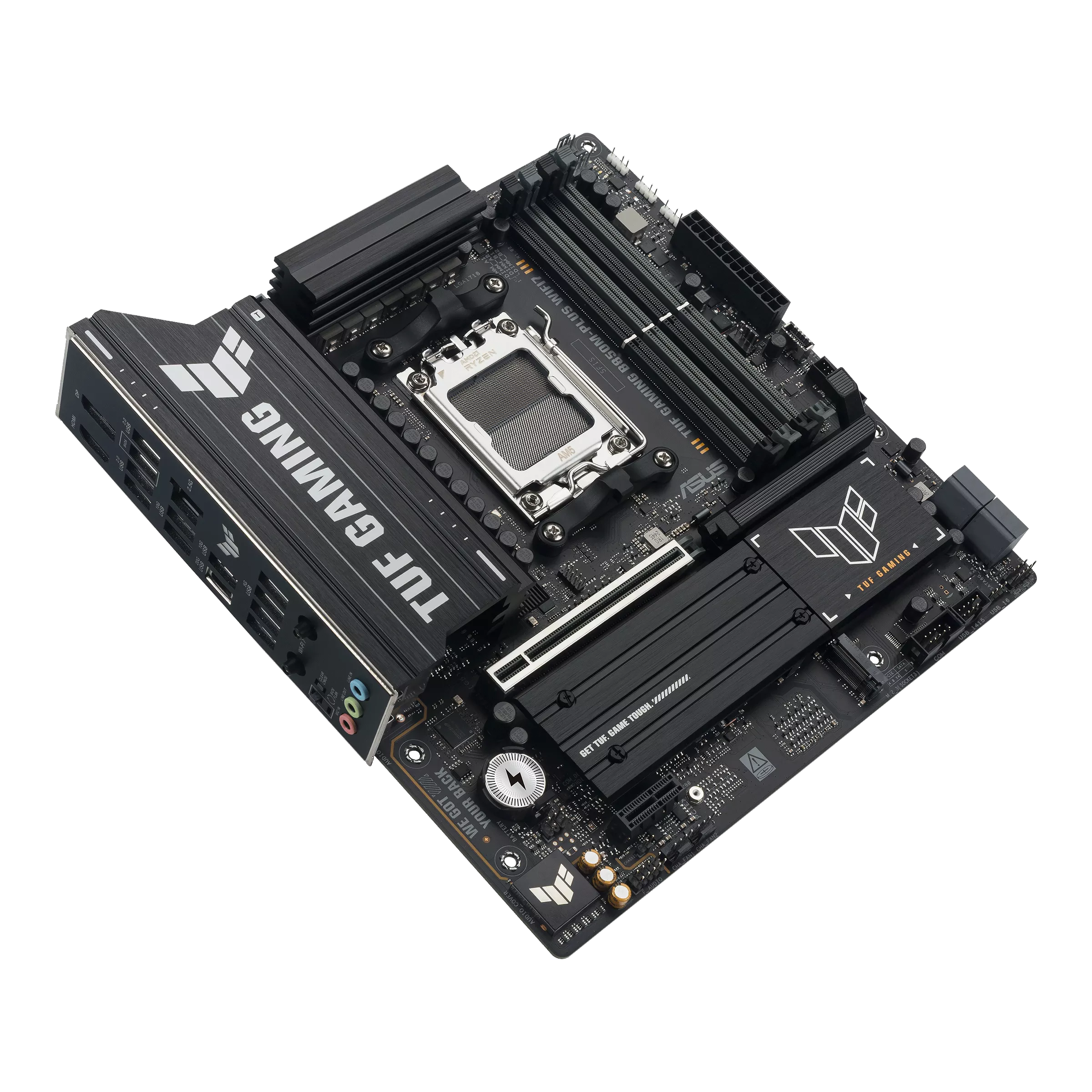

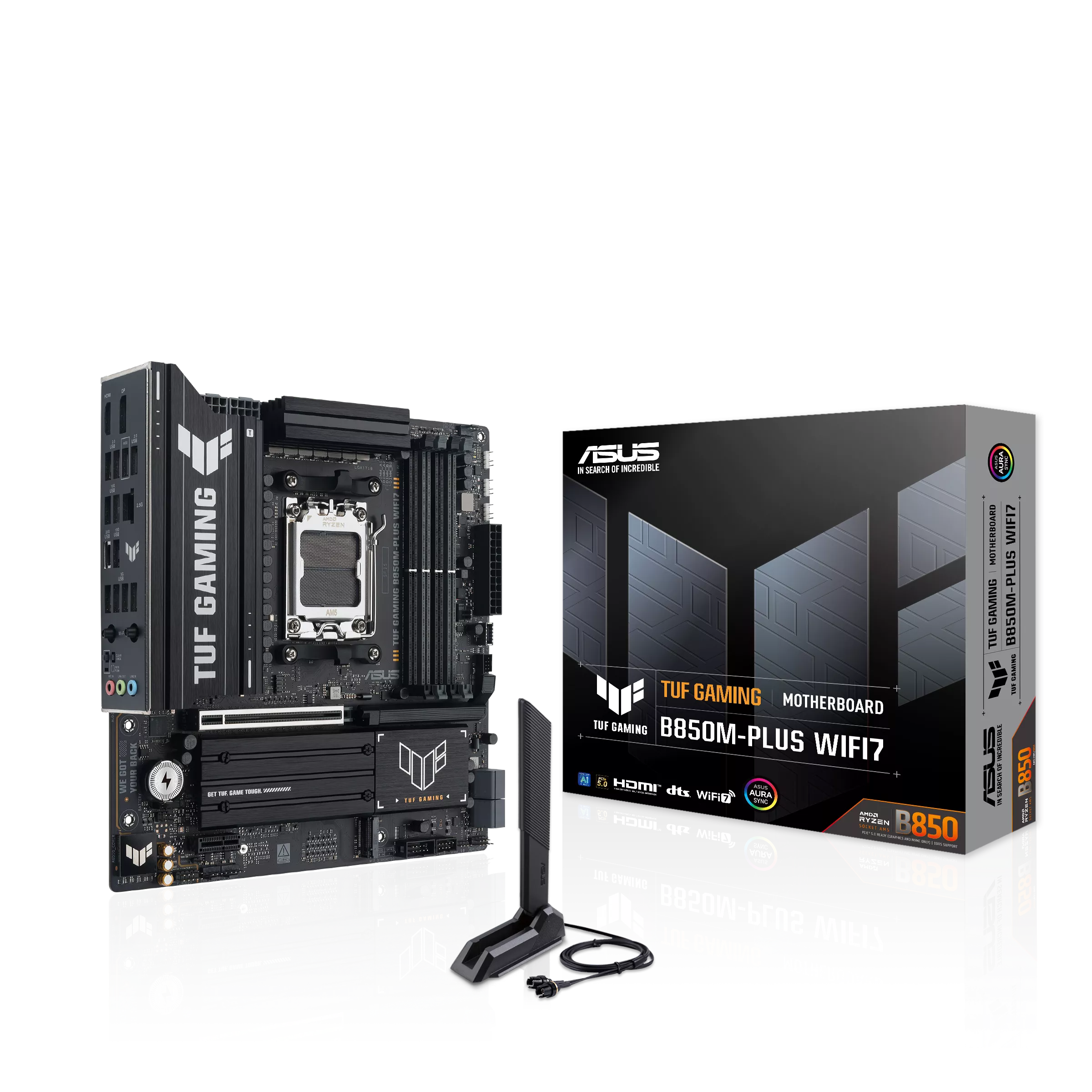

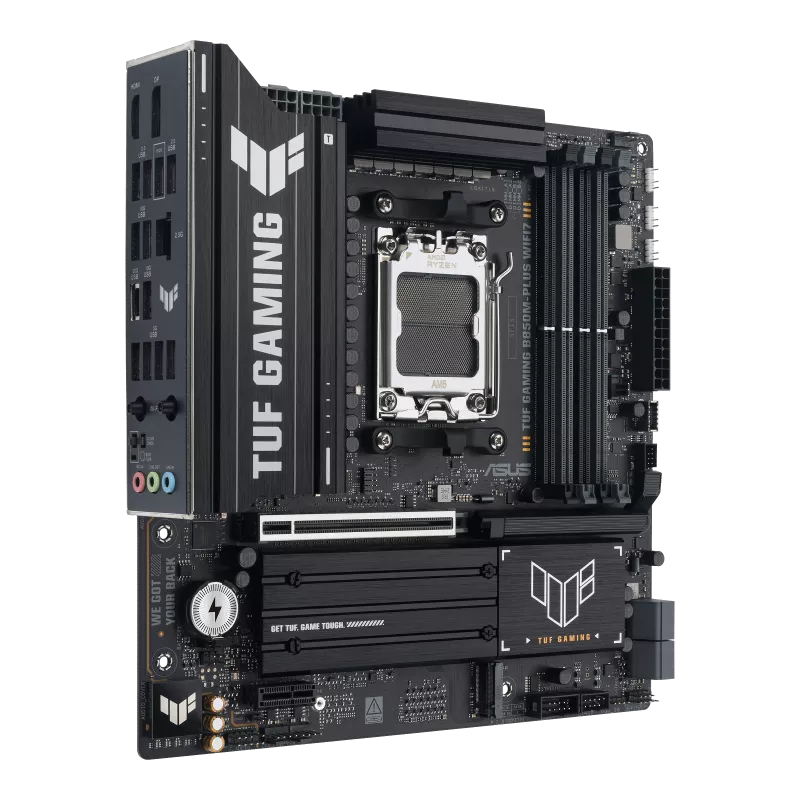

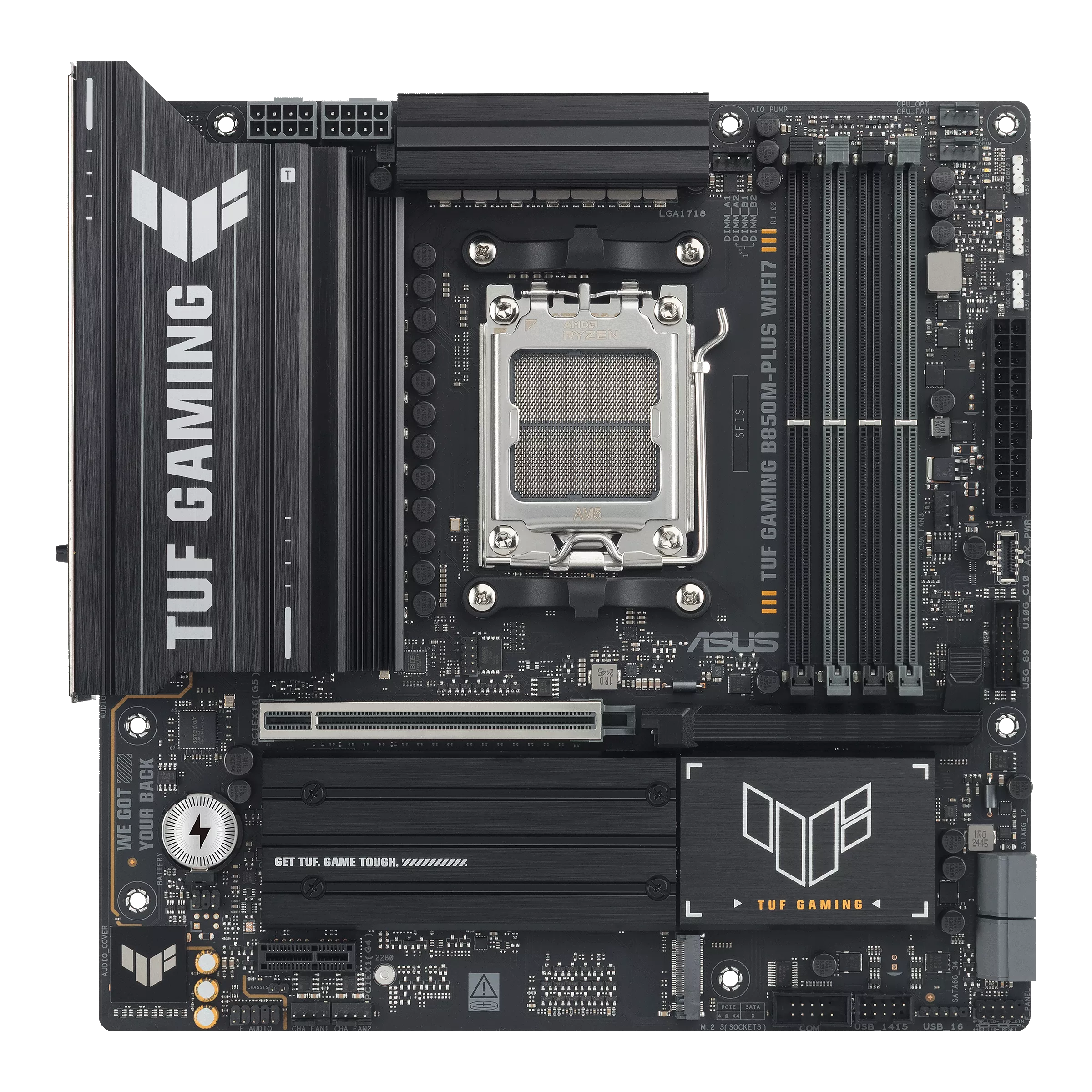

ASUS TUF GAMING B850M-PLUS WIFI7

The ASUS TUF GAMING B850M-PLUS WIFI7 is a powerful micro-ATX motherboard for modern AMD Ryzen PCs. It supports Ryzen 9000, 8000, and 7000 Series processors. Therefore, it is a strong choice for gaming and demanding workloads.

Built around the AMD B850 chipset, this motherboard supports DDR5 memory. It features four DIMM slots with support for up to 256GB RAM. Moreover, compatible memory can reach speeds of up to 8000+ MT/s through overclocking. ASUS EXPO and AEMP also make memory tuning easier.

For graphics, the board includes a PCIe 5.0 x16 slot. It also provides a PCIe 4.0 x1 slot for additional expansion. Storage is equally impressive. You get three M.2 slots for NVMe SSDs. One M.2 slot supports PCIe 5.0 x4 speeds. In addition, there are four SATA 6Gb/s ports.

The motherboard also delivers fast networking options. It includes Wi-Fi 7 2×2 for high-speed wireless connectivity. Furthermore, Realtek 2.5Gb Ethernet provides fast wired networking. Bluetooth support is also included for compatible wireless devices.

Power delivery uses a 14+2+1 power-stage design with 80A stages. Large VRM heatsinks help manage temperatures during heavy workloads. Additionally, M.2 heatsinks help keep compatible SSDs cooler.

ASUS also includes several useful DIY features. These include PCIe Q-Release, M.2 Q-Latch, Q-DIMM, Q-LED, BIOS FlashBack, and Clear CMOS. As a result, installation and troubleshooting become easier.

Overall, the ASUS TUF GAMING B850M-PLUS WIFI7 offers modern connectivity and strong expansion options. It is an excellent foundation for a compact AMD gaming or performance PC.

Key Specifications

• CPU Socket: AMD AM5
• Chipset: AMD B850
• CPU Support: Ryzen 9000 / 8000 / 7000 Series
• Memory: 4 × DDR5 DIMM, up to 256GB, 8000+ MT/s (OC)
• Expansion: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x1
• Storage: 3 × M.2, 4 × SATA 6Gb/s

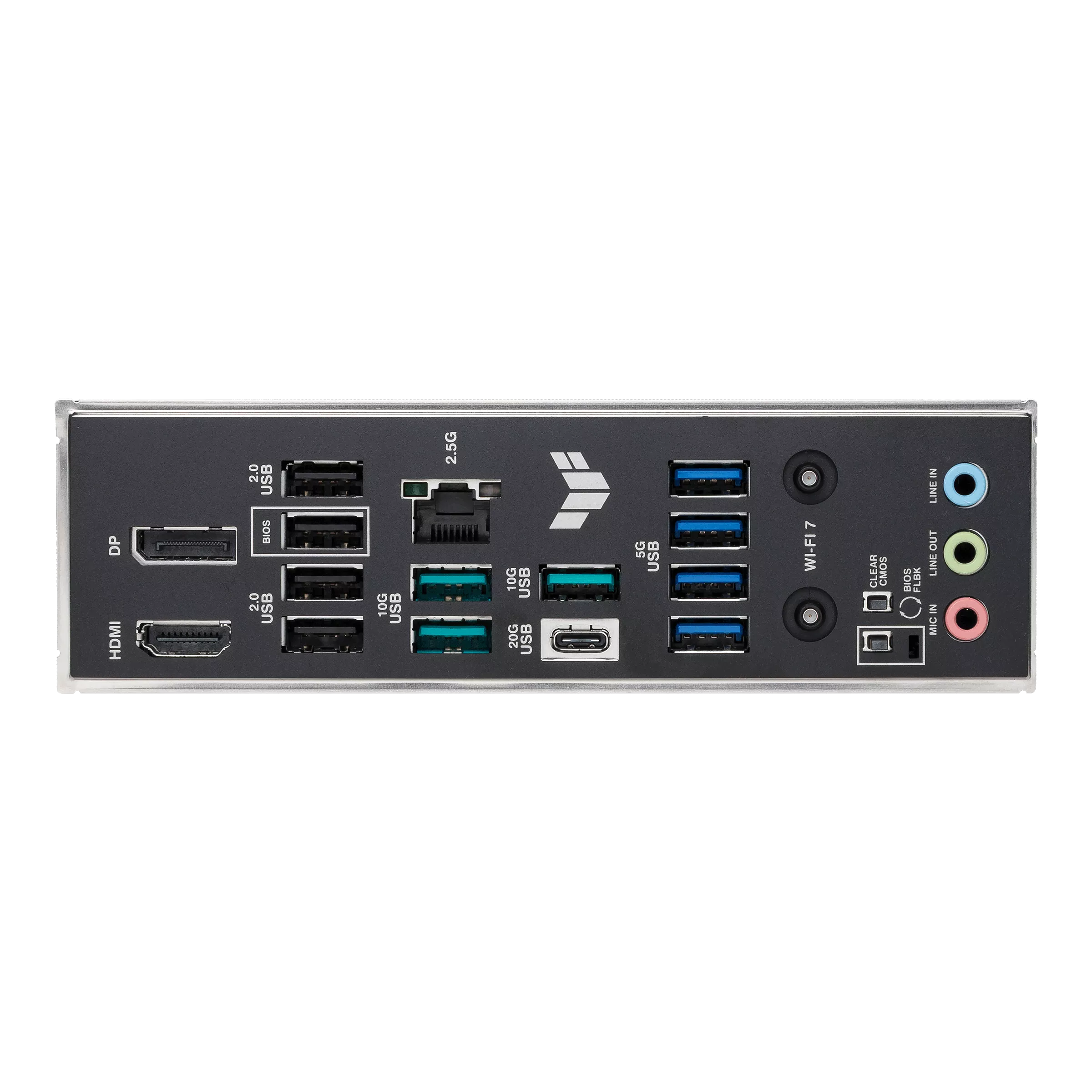

• Networking: Wi-Fi 7 2×2 + Realtek 2.5Gb Ethernet
• Audio: Realtek ALC1220P 7.1 Surround Sound
• Form Factor: Micro-ATX, 24.4 × 24.4cm
