Description

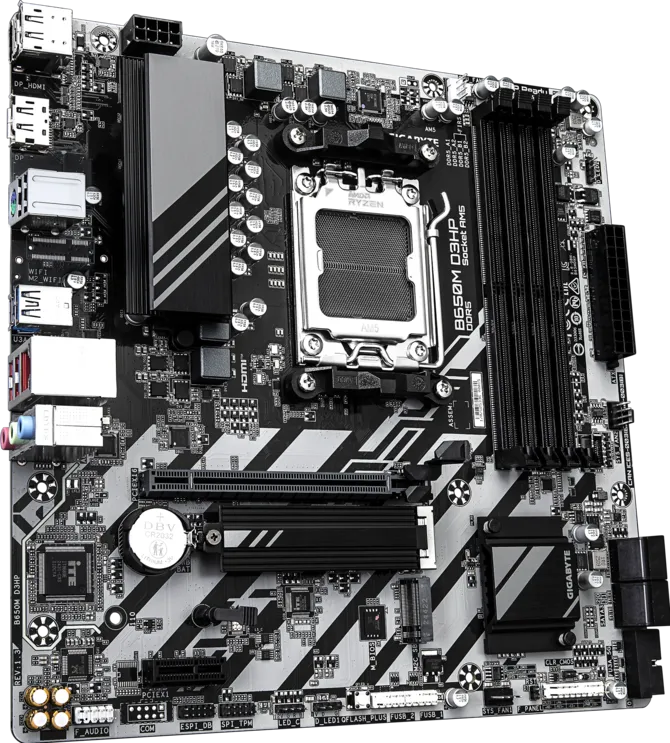

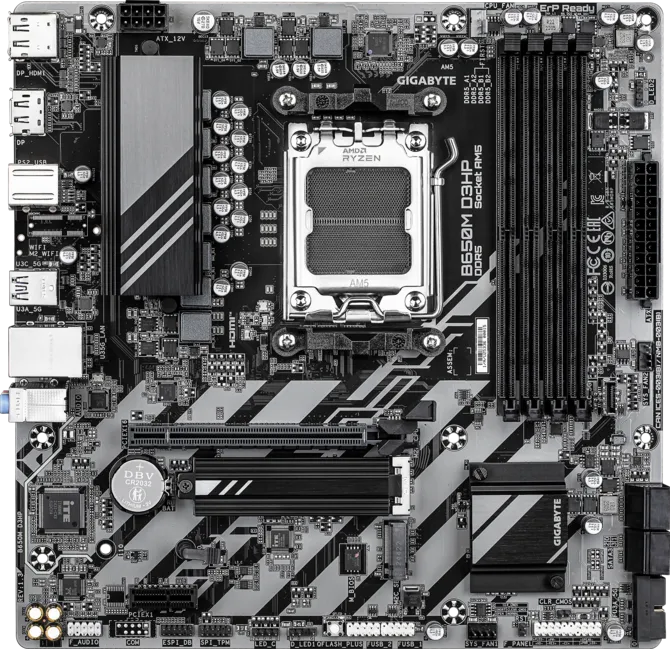

GIGABYTE B650M D3HP

The GIGABYTE B650M D3HP is a reliable Micro-ATX motherboard built for AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series processors. Powered by the AMD B650 chipset, it delivers stable performance for gaming, content creation, and everyday computing. It combines modern connectivity, DDR5 memory support, and PCIe 4.0 expansion to meet the demands of today’s PC builders.

The motherboard features four DDR5 DIMM slots and supports up to 256GB of system memory. It supports memory speeds up to DDR5-8000 (OC) and is compatible with both AMD EXPO™ and Intel XMP memory profiles. This allows users to achieve faster memory performance with compatible DDR5 kits.

For storage, the B650M D3HP includes two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports. These options provide fast boot speeds, quick application loading, and ample storage flexibility. RAID 0, RAID 1, and RAID 10 are also supported for both NVMe and SATA drives.

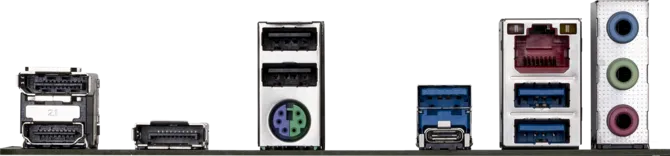

Expansion is handled by a PCIe 4.0 x16 slot for modern graphics cards and a PCIe 3.0 x1 slot for additional devices. The rear I/O includes two DisplayPort 1.4 outputs, one HDMI 2.1 port, USB 3.2 Gen 1 Type-C, multiple USB ports, 2.5GbE LAN, and high-definition Realtek audio. It also features Q-Flash Plus, making BIOS updates easy without installing a CPU or memory.

The motherboard also provides RGB and Addressable RGB headers, allowing users to customize their system lighting. With its strong power delivery, modern connectivity, DDR5 support, and expansion options, the GIGABYTE B650M D3HP is an excellent foundation for a high-performance AMD AM5 gaming or productivity PC.

Key Specifications

• Chipset: AMD B650
• CPU Socket: AMD Socket AM5
• Processor Support: AMD Ryzen™ 7000 / 8000 / 9000 Series
• Form Factor: Micro-ATX
• Memory: 4 × DDR5 DIMM, Up to 256GB
• Memory Speed: Up to DDR5-8000 (OC)
• Expansion Slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
• Storage: 2 × PCIe 4.0 M.2, 4 × SATA 6Gb/s
• Display Outputs: 2 × DisplayPort 1.4, 1 × HDMI 2.1
• Networking: 2.5GbE LAN
• USB: USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, USB 2.0
• Audio: Realtek High Definition Audio (2/4/5.1/7.1-Channel)
• Lighting: RGB & Addressable RGB Headers
• Special Features: Q-Flash Plus, AMD EXPO™, Intel XMP
