Description

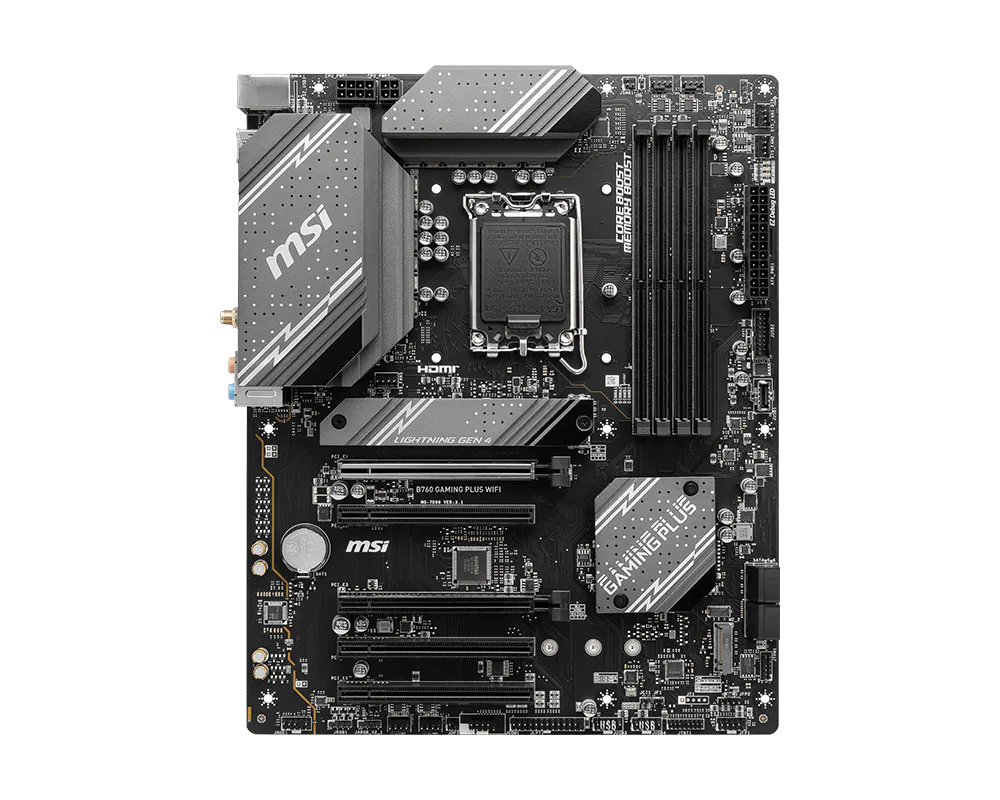

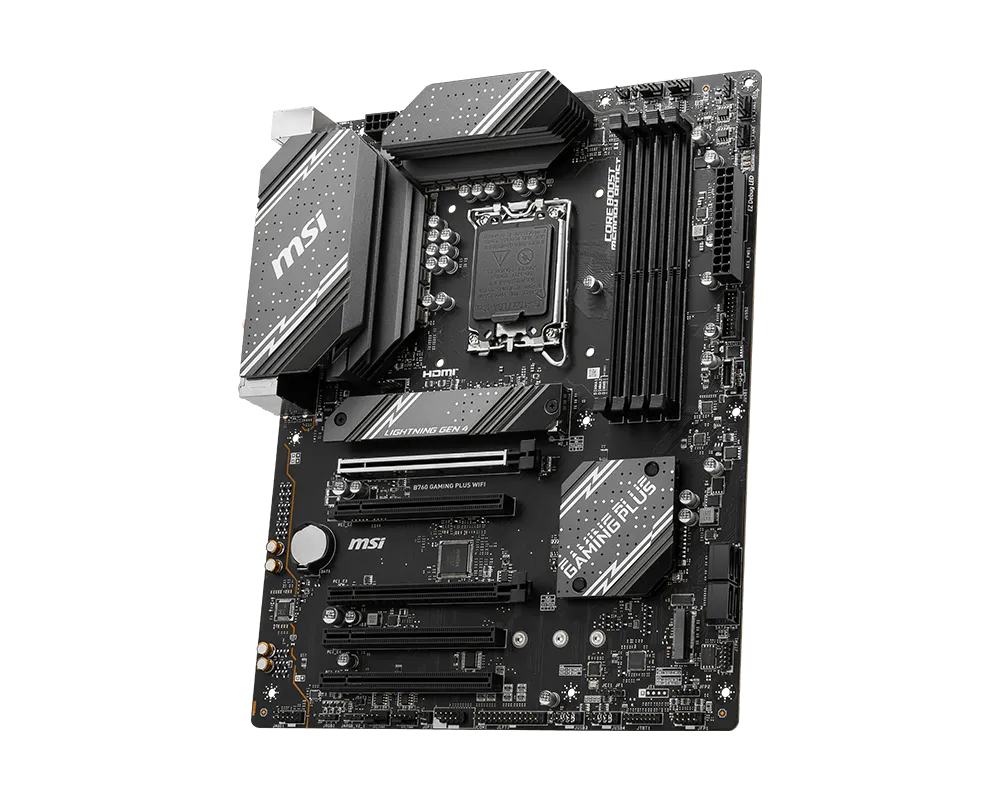

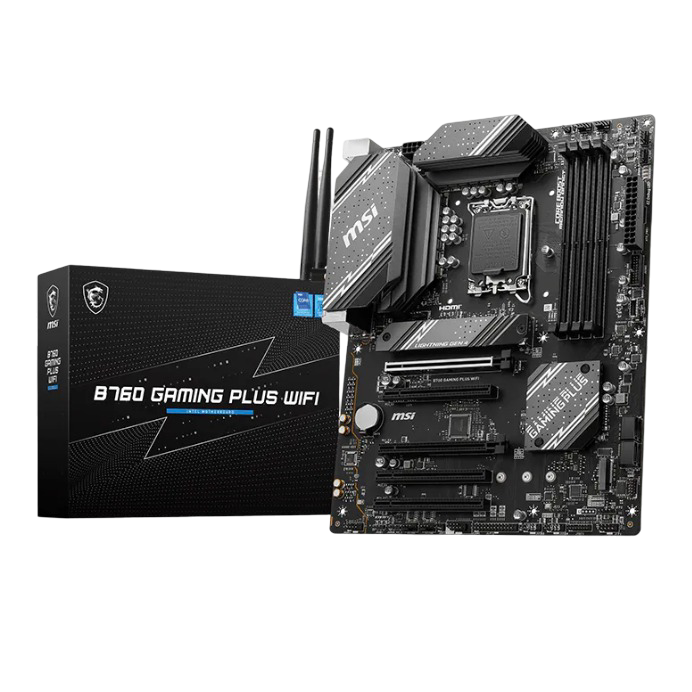

MSI B760 GAMING PLUS WIFI

The MSI B760 GAMING PLUS WIFI is a feature-rich motherboard designed for gamers and PC builders who want strong performance, fast connectivity, and modern hardware support. It is a great foundation for gaming PCs, productivity systems, and high-performance builds. Moreover, its standard ATX design provides plenty of room for expansion.

The motherboard uses the Intel B760 chipset and supports 12th, 13th, and 14th Gen Intel Core processors, along with compatible Pentium Gold and Celeron processors using the LGA 1700 socket. Therefore, you have plenty of processor options when planning your build.

For memory, the board supports DDR5 dual-channel memory with speeds up to 6800+MHz through overclocking. As a result, you can take advantage of faster memory for gaming and demanding applications. MSI also includes Memory Boost and XMP support for easier memory optimization.

The motherboard provides a PCIe 4.0 x16 slot for a dedicated graphics card. In addition, it includes two PCIe 4.0 x4 M.2 slots for fast NVMe SSDs and four SATA 6Gb/s ports for additional storage. M.2 Shield Frozr also helps manage SSD temperatures during heavy use.

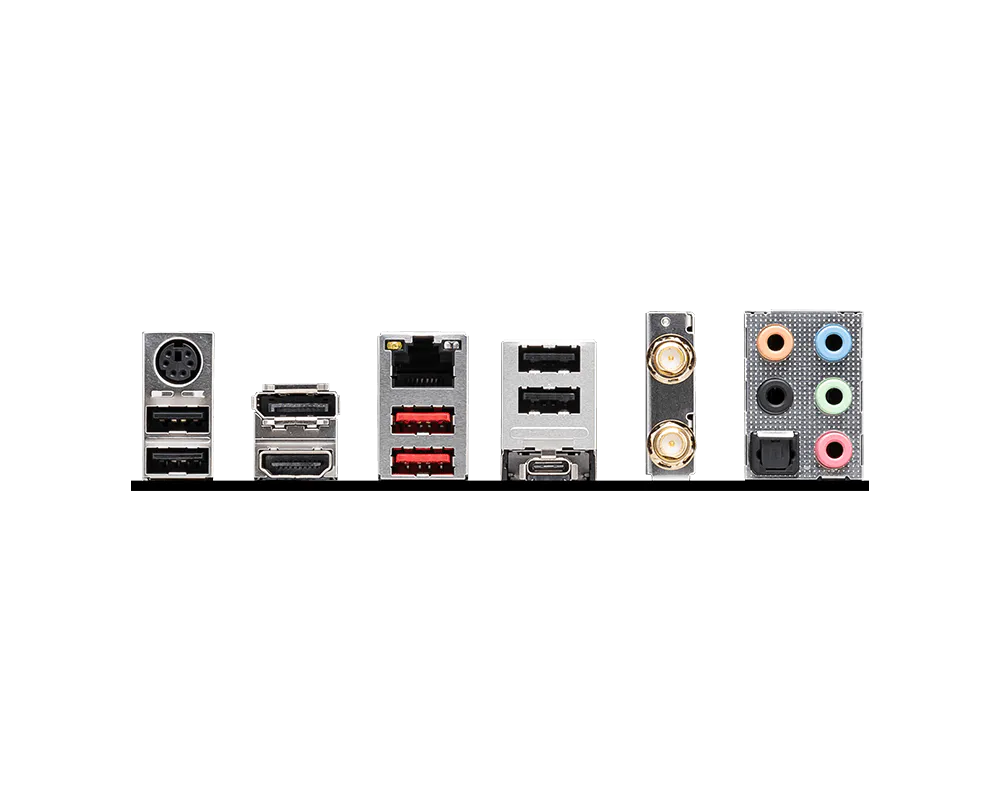

Networking is another major advantage. The B760 GAMING PLUS WIFI includes 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3. Furthermore, USB 3.2 Gen 2 connectivity provides fast data transfer, while the rear USB Type-C port supports speeds up to 10Gbps.

Overall, the MSI B760 GAMING PLUS WIFI combines DDR5 support, PCIe 4.0, fast storage, high-speed networking, and strong connectivity. Therefore, it is an excellent choice for a modern Intel gaming PC.

Key Specifications

• Chipset: Intel B760
• CPU Support: Intel 12th / 13th / 14th Gen
• Socket: LGA 1700
• Memory: DDR5, Dual Channel, up to 6800+MHz (OC)
• Expansion: 1 × PCIe 4.0 x16
• Storage: 2 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s
• Networking: 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
• USB: USB 3.2 Gen 2, Rear Type-C up to 10Gbps
• Audio: MSI Audio Boost
• Form Factor: ATX
