Description

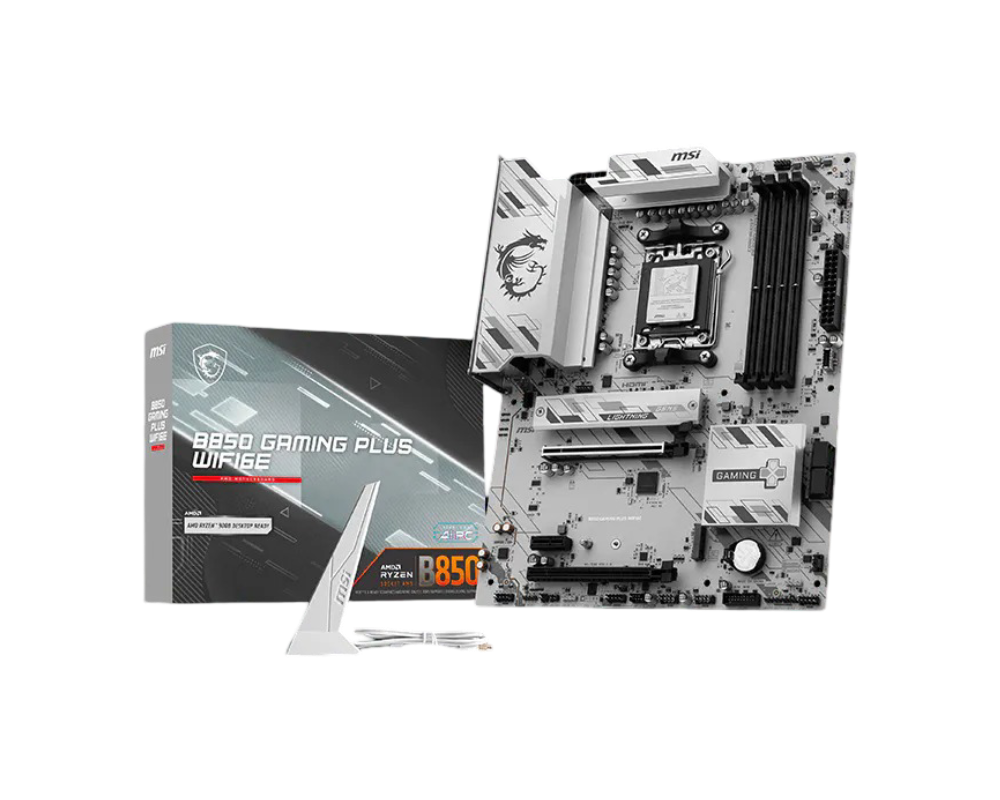

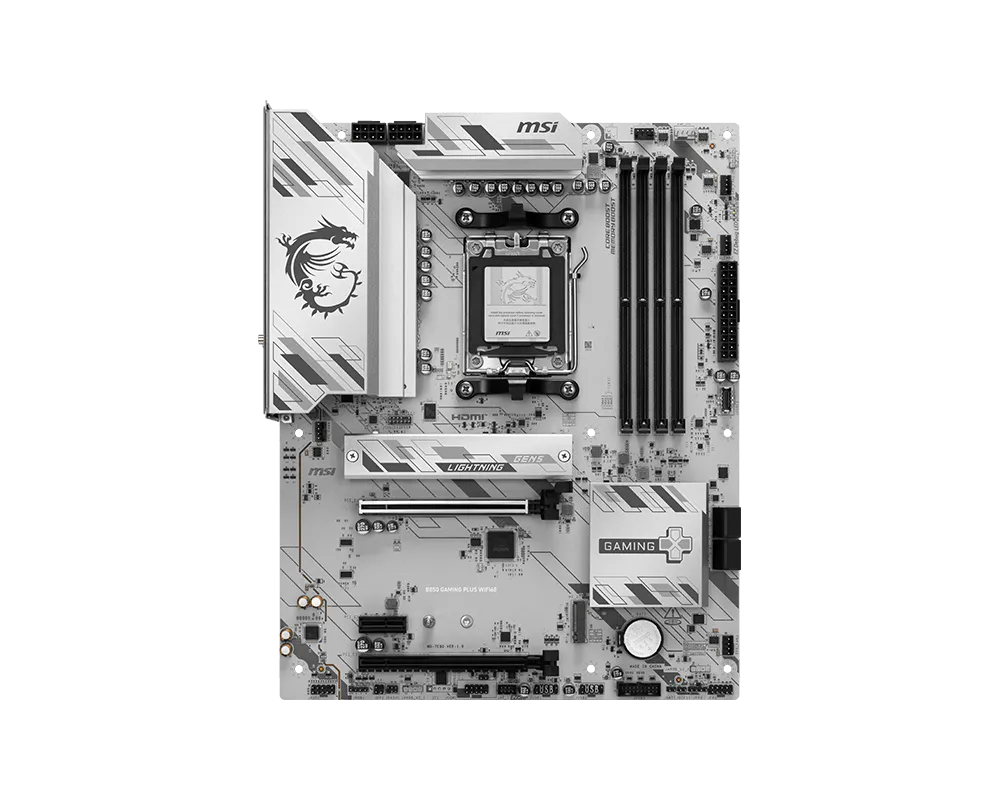

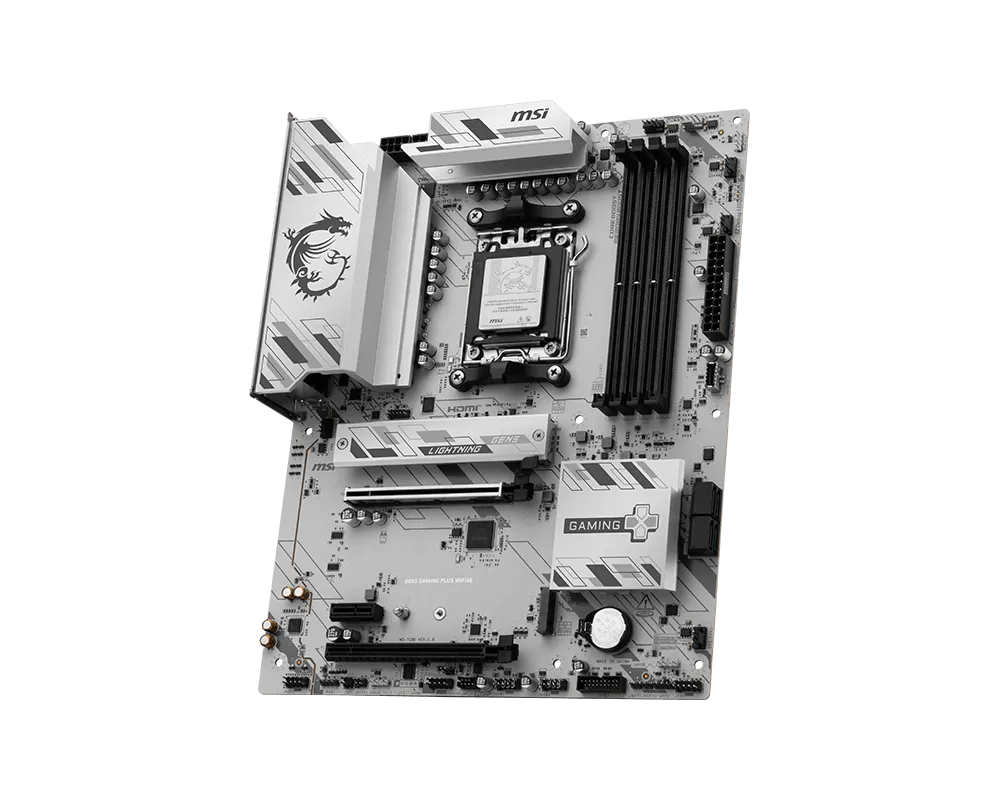

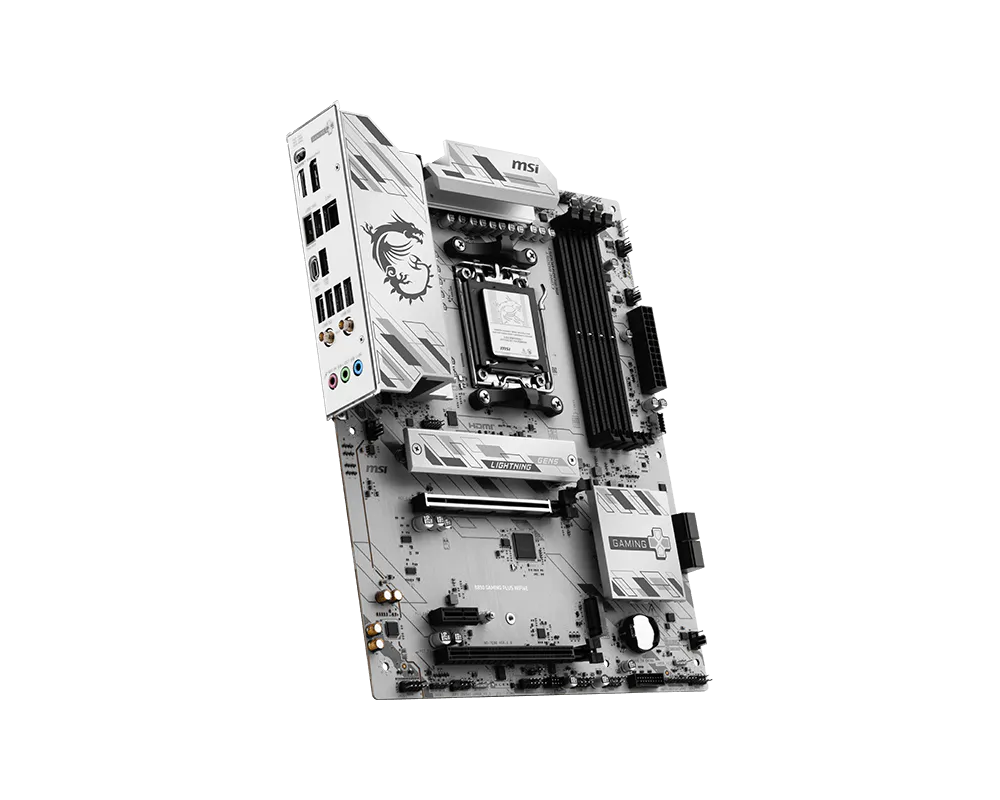

MSI B850 GAMING PLUS WIFI6E

The MSI B850 GAMING PLUS WIFI6E is a powerful AMD motherboard designed for modern gaming PCs and high-performance builds. It combines fast DDR5 memory, PCIe 4.0 connectivity, PCIe 5.0 NVMe storage, and Wi-Fi 6E. Therefore, it offers a strong platform for gamers and PC enthusiasts.

The motherboard uses the AMD B850 chipset with the AM5 socket. It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors. In addition, four DDR5 memory slots support up to 256GB and speeds up to 8200+ MT/s through overclocking. AMD EXPO support also makes memory tuning easier.

For graphics, the board provides a PCIe 4.0 x16 slot with Steel Armor reinforcement. It also includes two M.2 slots, with one supporting PCIe 5.0 x4 and the other supporting PCIe 4.0 x4. Furthermore, four SATA 6Gb/s ports provide additional storage options.

Networking is another key advantage. The motherboard features Realtek 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3. As a result, you get fast wired and wireless connectivity for gaming, streaming, downloads, and everyday use.

The B850 GAMING PLUS WIFI6E also provides USB 10Gbps Type-A and Type-C connectivity, along with useful EZ DIY features such as EZ M.2 Clip II, EZ PCIe Clip II, Flash BIOS Button, and Clear CMOS Button. Overall, it is a well-balanced choice for a modern AMD gaming PC.

Key Specifications

• Chipset: AMD B850
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series
• Socket: AM5
• Memory: 4 × DDR5, up to 256GB, up to 8200+ MT/s (OC)
• Expansion: 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1
• Storage: 1 × M.2 PCIe 5.0 x4, 1 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s
• Networking: 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

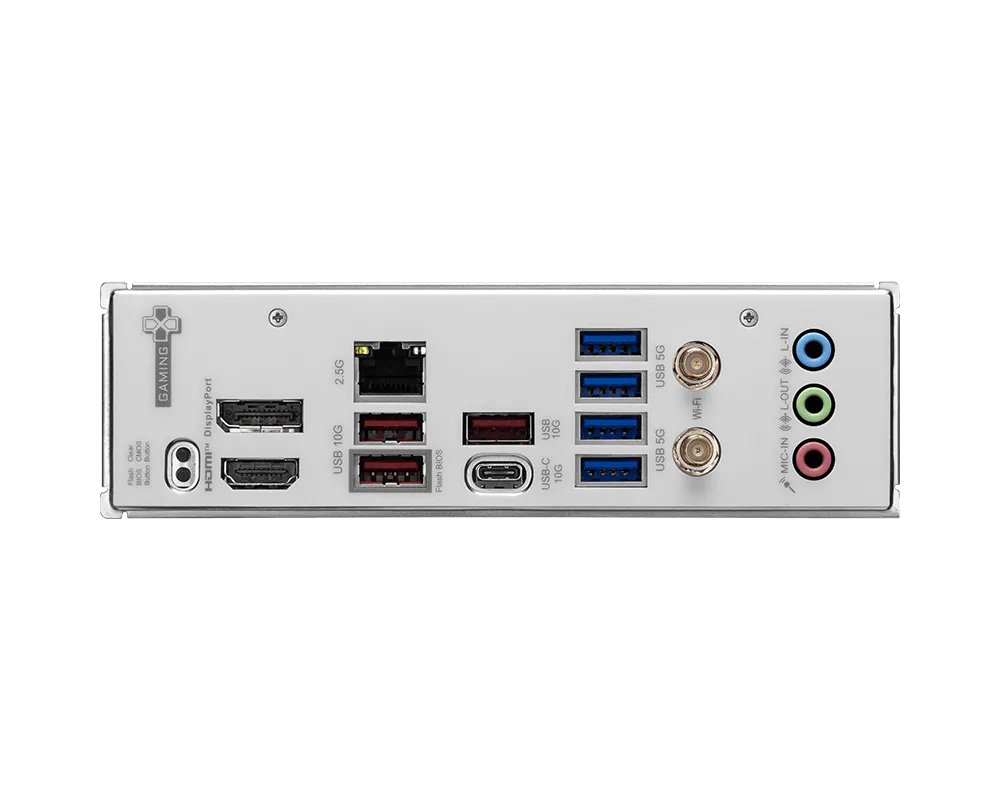

• USB: USB 10Gbps Type-A & Type-C
• Audio: 7.1-Channel HD Audio with Audio Boost
• Form Factor: ATX
