Description

MSI B860M GAMING WIFI

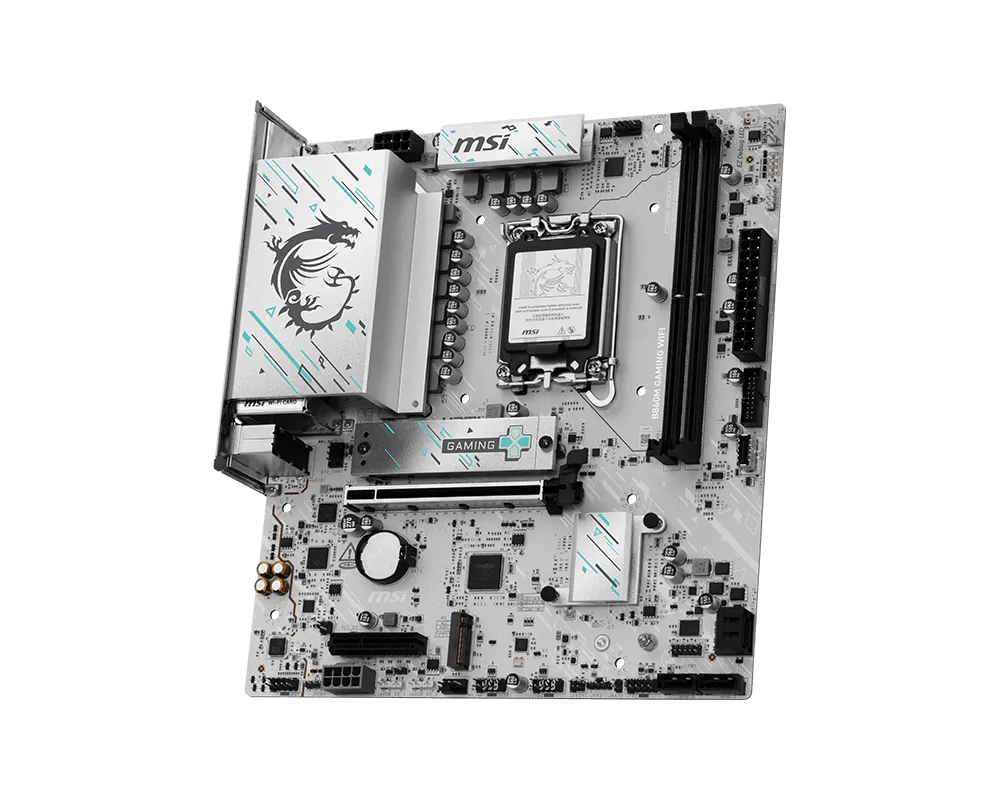

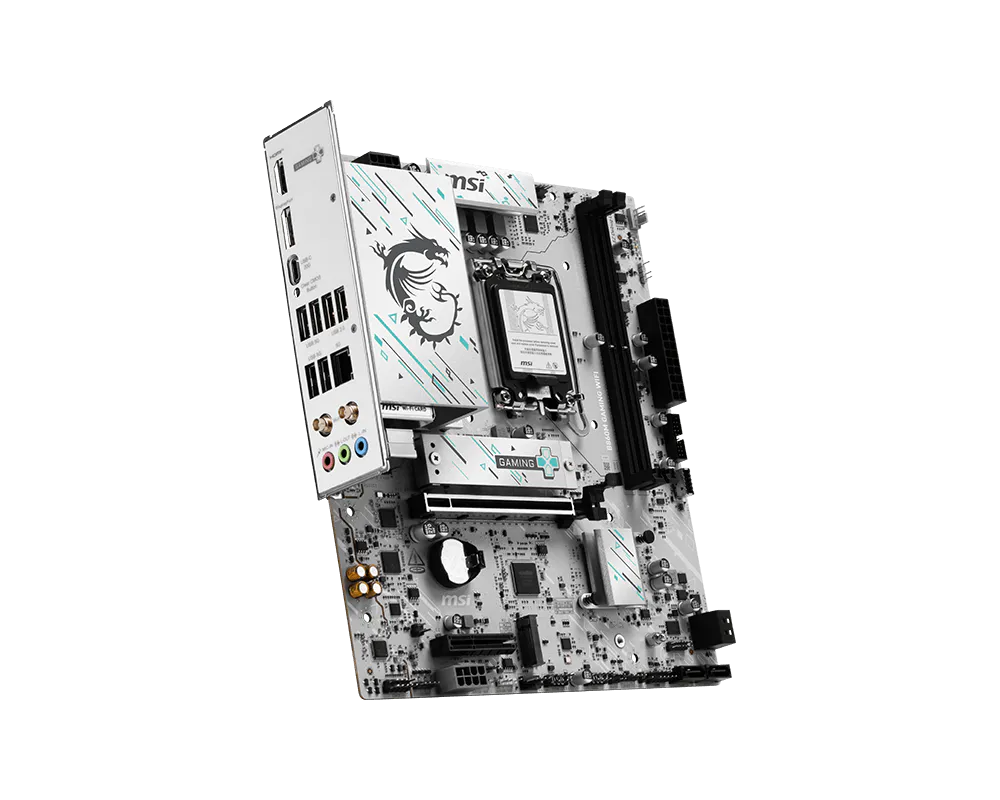

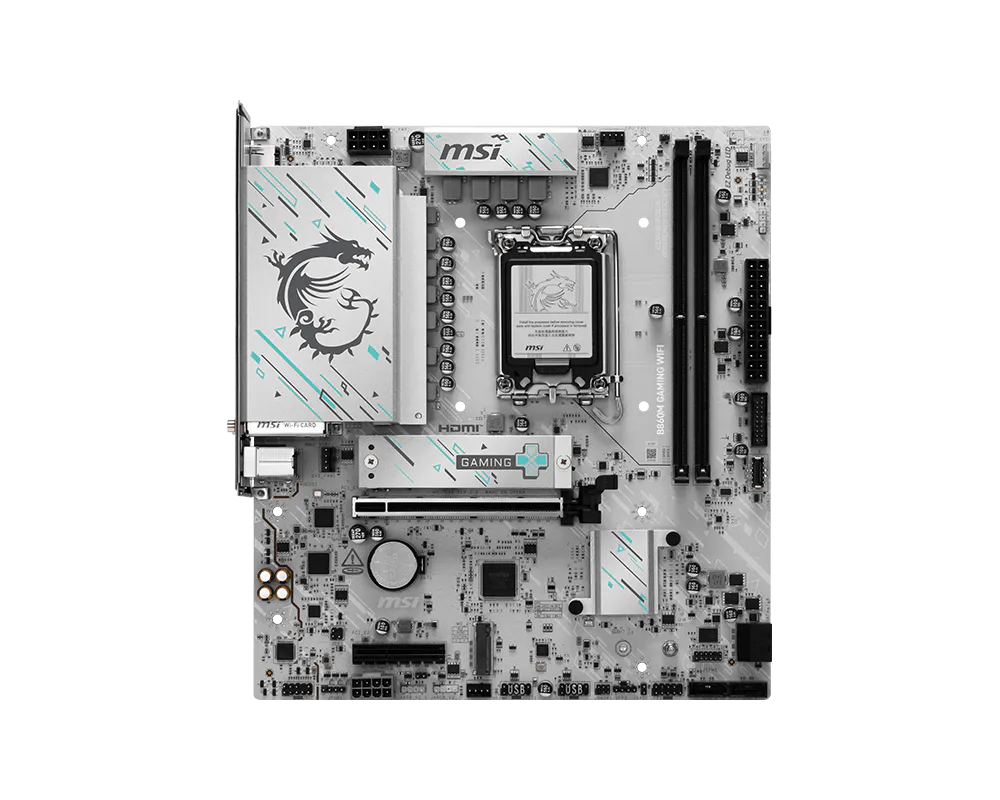

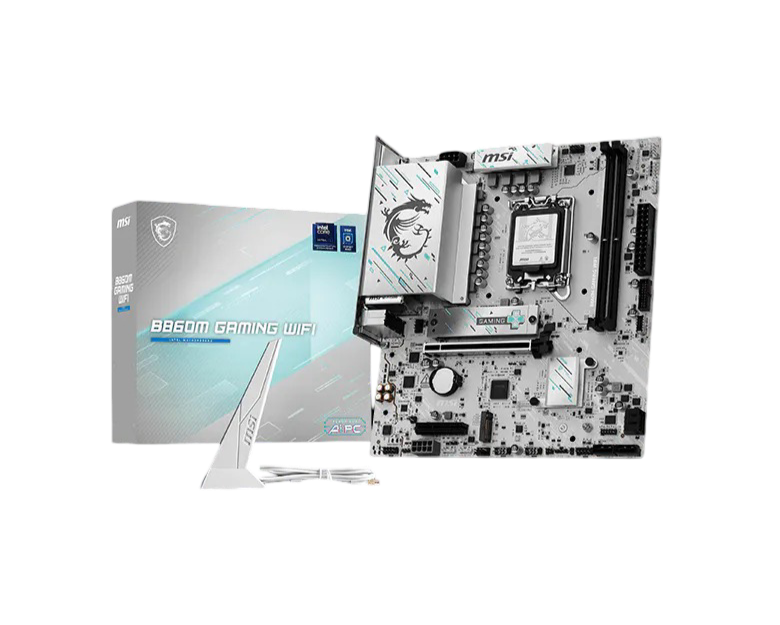

The MSI B860M GAMING WIFI is a modern Micro-ATX motherboard designed for gaming PCs built around Intel Core Ultra processors. It combines fast DDR5 memory, PCIe 5.0 support, high-speed networking, and convenient connectivity. Therefore, it is a strong choice for gamers and PC builders who want a compact yet capable platform.

The motherboard uses the Intel B860 chipset with the LGA 1851 socket and supports Intel Core Ultra Processors (Series 2). In addition, it features two DDR5 memory slots with support for up to 128GB and speeds reaching 9066+ MT/s through overclocking. As a result, you can build a fast and responsive system with modern memory technology.

For graphics and expansion, the B860M GAMING WIFI includes a PCIe 5.0 x16 slot for a dedicated graphics card. It also provides two M.2 slots, including one PCIe 5.0 x4 and one PCIe 4.0 x4 slot. Furthermore, four SATA 6Gb/s ports provide additional storage options.

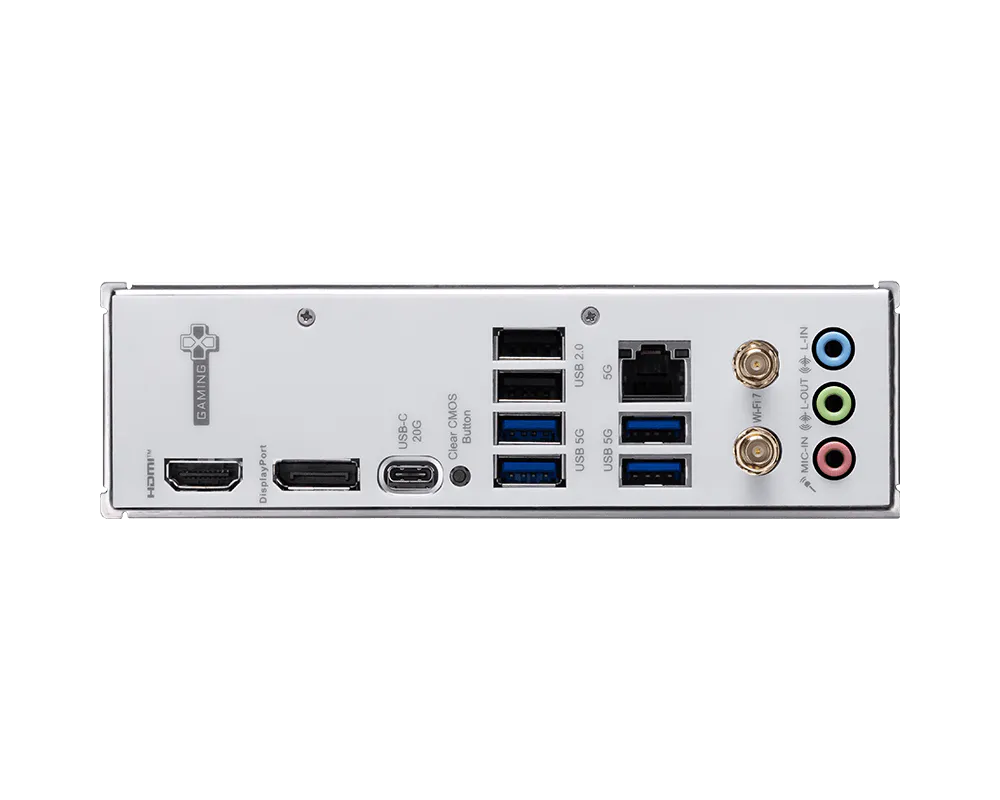

Networking is another major strength. The motherboard features 5G LAN, Wi-Fi 7, and Bluetooth 5.4. Therefore, you can enjoy fast wired and wireless connections for gaming, streaming, downloads, and everyday use. It also includes a USB 20Gbps Type-C port for fast data transfers.

MSI also adds practical features such as M.2 Shield Frozr, EZ M.2 Clip II, EZ PCIe Clip II, EZ Debug LED, and a pre-installed I/O shield. These features make installation and troubleshooting easier. Overall, the MSI B860M GAMING WIFI offers an excellent combination of modern performance, fast connectivity, and compact design for a new Intel gaming PC.

Key Specifications

• Chipset: Intel B860
• CPU Support: Intel Core Ultra Processors (Series 2)
• Socket: LGA 1851
• Memory: 2 × DDR5, up to 128GB, up to 9066+ MT/s (OC)
• Expansion: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4
• Storage: 1 × M.2 PCIe 5.0 x4, 1 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s
• Networking: 5G LAN, Wi-Fi 7, Bluetooth 5.4
• USB: USB 20Gbps Type-C
• Audio: 7.1-Channel HD Audio
• Form Factor: Micro-ATX (mATX)
