Description

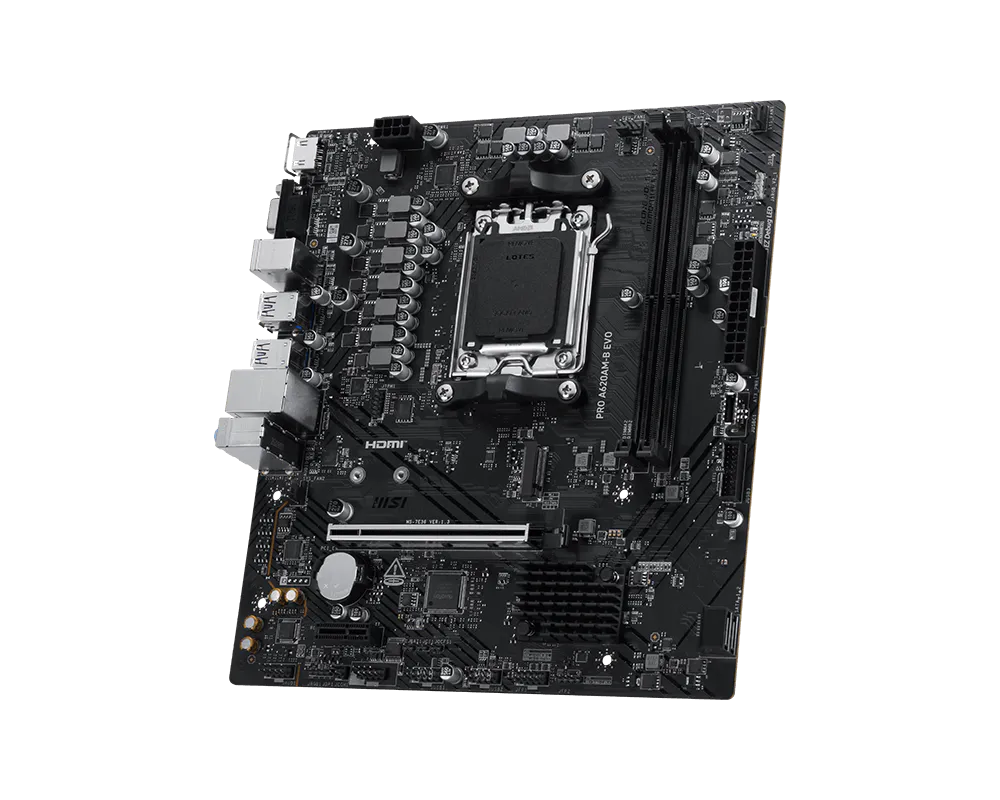

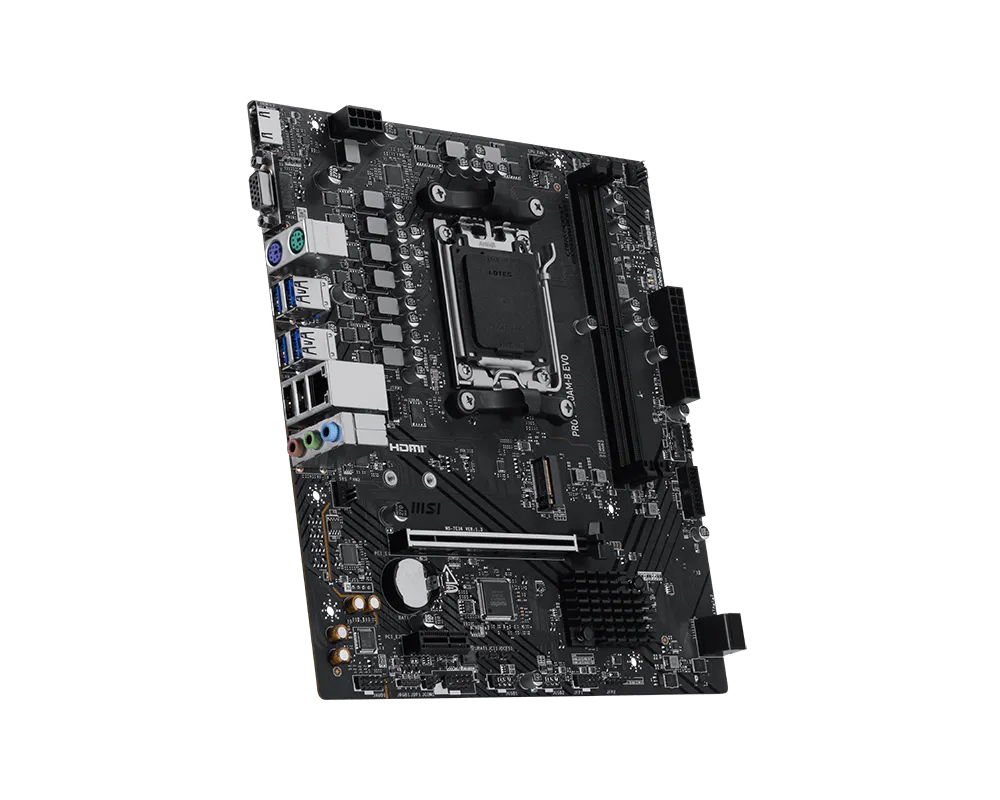

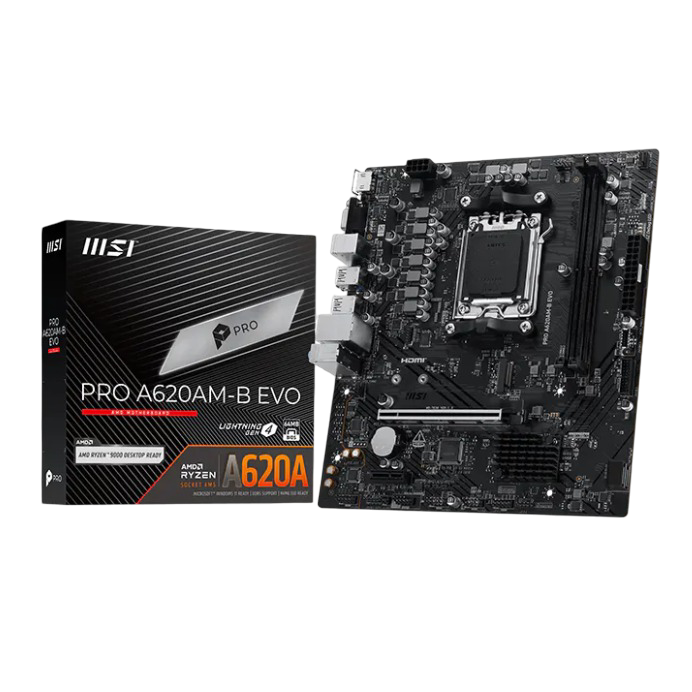

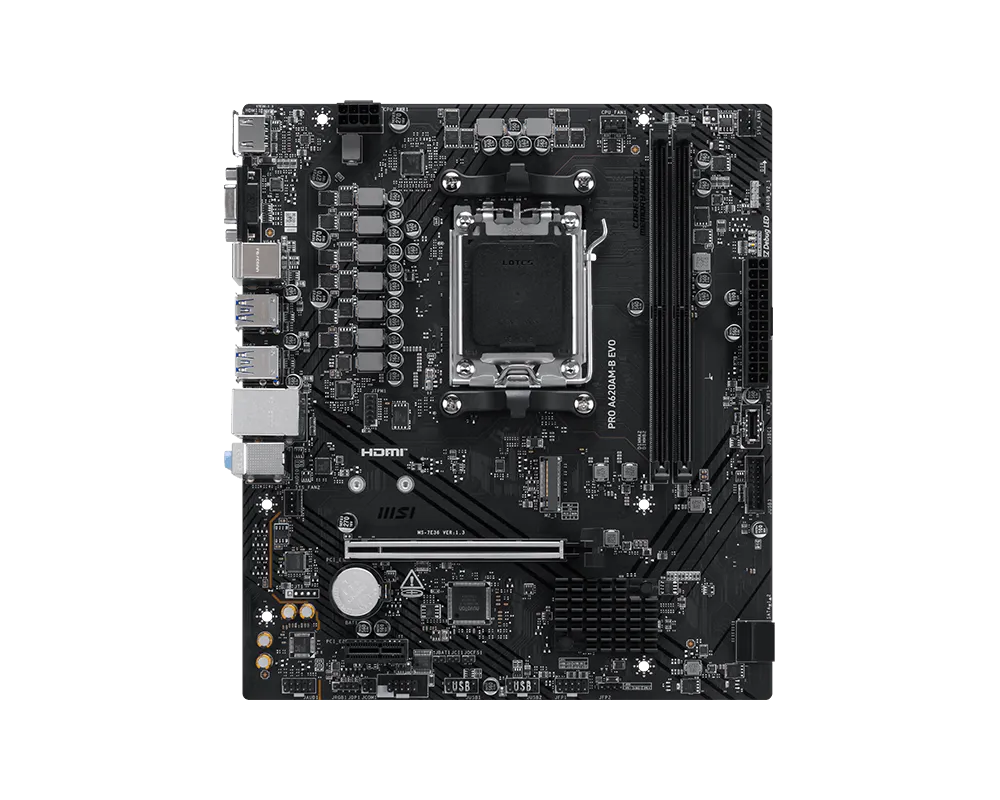

MSI PRO A620AM-B EVO

The MSI PRO A620AM-B EVO is a practical AMD motherboard designed for users who want a reliable foundation for a modern gaming PC or everyday desktop. It combines AM5 processor support, DDR5 memory, PCIe 4.0, and 2.5G networking in a compact Micro-ATX design. Therefore, it is a good choice for affordable and space-conscious PC builds.

The motherboard uses the AMD A620A chipset with the AM5 socket. It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Moreover, its two DDR5 memory slots support up to 128GB and speeds up to 6800+ MT/s through overclocking. AMD EXPO support also makes memory tuning easier.

For graphics, the board includes a PCIe 4.0 x16 slot with MSI Steel Armor reinforcement. In addition, it provides one M.2 PCIe 4.0 x4 slot for a fast NVMe SSD and two SATA 6Gb/s ports for additional storage. As a result, you can build a responsive system with modern storage options.

Networking is another useful feature. The PRO A620AM-B EVO includes Realtek 2.5G LAN, providing faster wired networking for gaming, downloads, and other demanding tasks. Furthermore, the motherboard offers HDMI 2.1 and VGA outputs when paired with a compatible processor featuring integrated graphics.

MSI also includes practical features such as EZ Debug LED, Core Boost, Memory Boost, Frozr AI Cooling, and a 64MB BIOS. Overall, the MSI PRO A620AM-B EVO delivers the essential features needed for a modern AMD AM5 PC while keeping the build compact and cost-effective.

Key Specifications

• Chipset: AMD A620A
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series
• Socket: AM5
• Memory: 2 × DDR5, up to 128GB, up to 6800+ MT/s (OC)
• Expansion: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
• Storage: 1 × M.2 PCIe 4.0 x4, 2 × SATA 6Gb/s
• Networking: Realtek 2.5G LAN

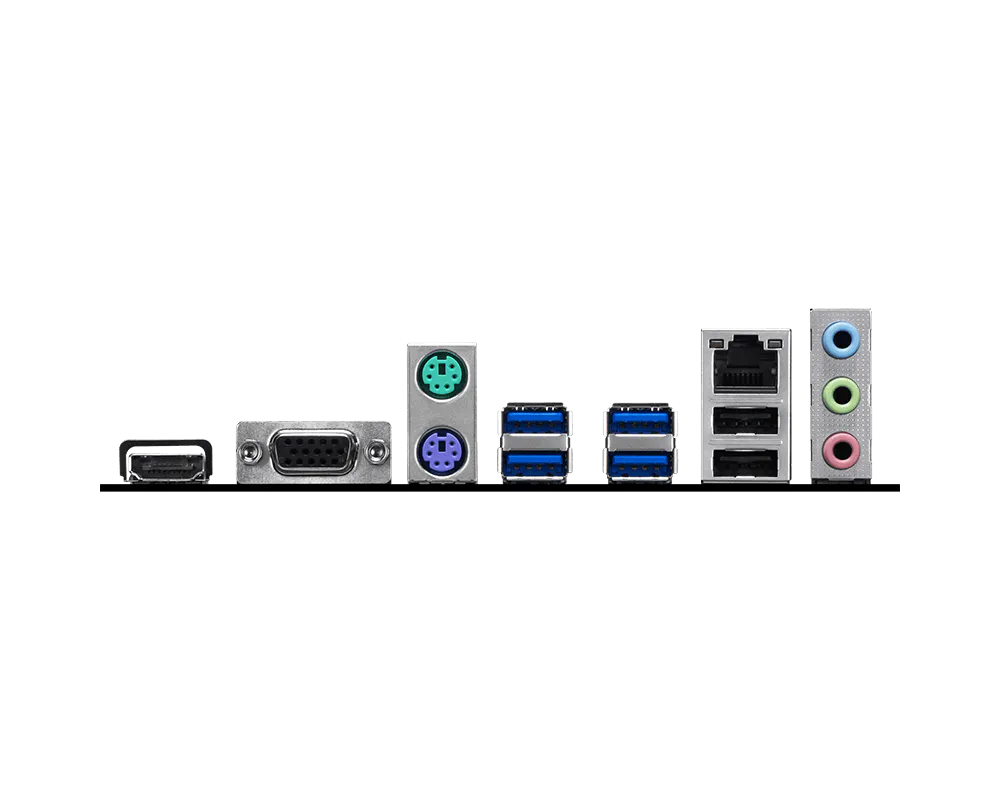

• Display Outputs: HDMI 2.1, VGA
• Audio: 7.1-Channel HD Audio
• Form Factor: Micro-ATX (mATX)
