Description

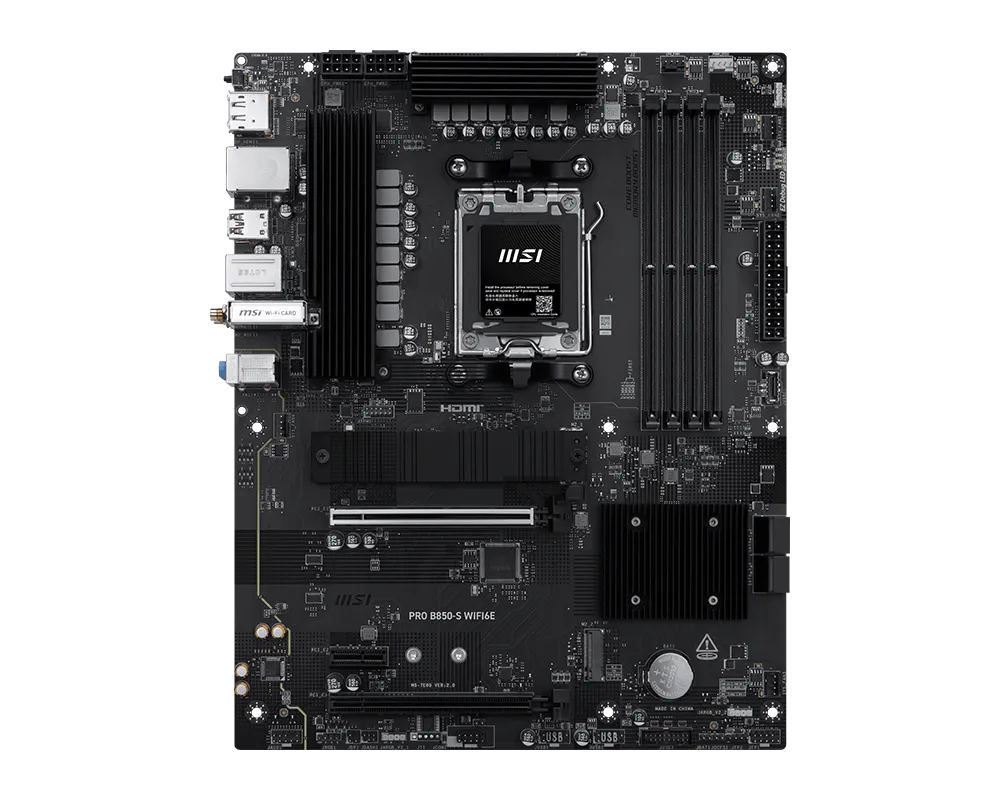

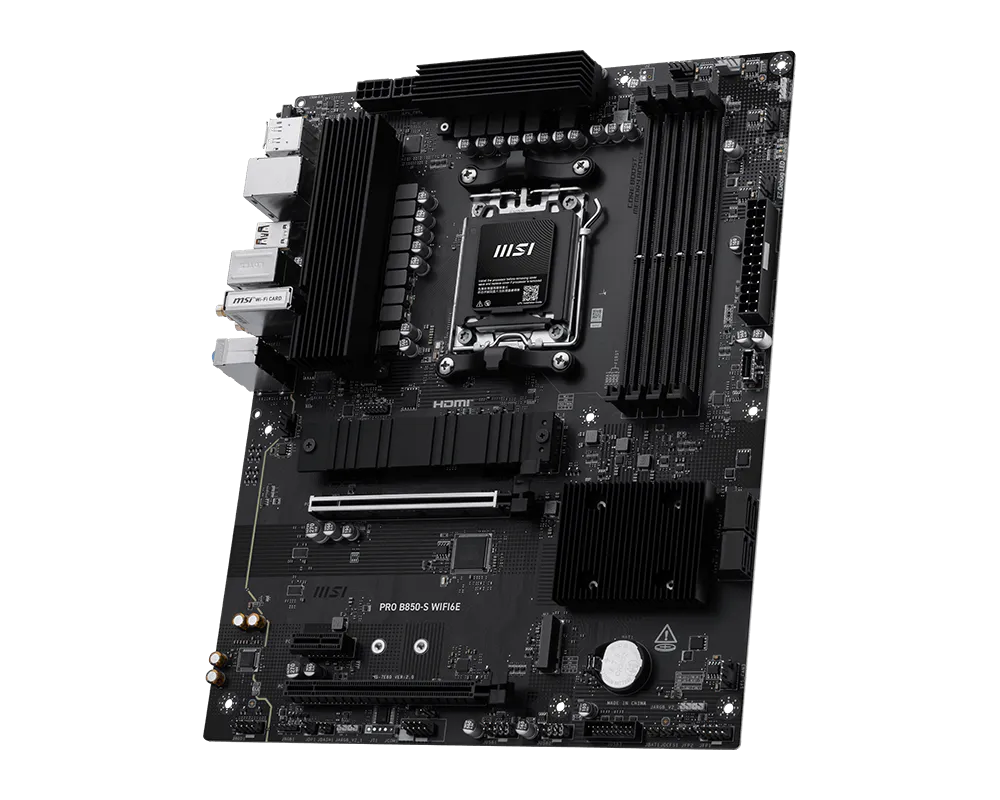

MSI PRO B850-S WIFI6E

The MSI PRO B850-S WIFI6E is a reliable and feature-rich motherboard designed for users who want a powerful and modern PC build. It supports AMD Ryzen™ 9000, 8000, and 7000 Series processors with the AM5 socket, making it a great choice for gaming, office work, content creation, and everyday computing.

This motherboard supports DDR5 memory with four RAM slots and up to 256GB capacity. It also supports high-speed memory up to DDR5 8200+ MT/s (OC) with AMD EXPO™ support. As a result, your system can handle multitasking, demanding applications, and heavy workloads more smoothly.

For storage, the MSI PRO B850-S WIFI6E comes with two M.2 slots and four SATA ports. The main M.2 slot supports PCIe 5.0, allowing faster SSD performance with compatible drives. Additionally, the second M.2 slot supports PCIe 4.0, giving you flexible storage options for games, software, and large files.

The motherboard uses a strong 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors. This helps provide stable power to the processor during demanding tasks. Furthermore, MSI’s cooling features, including M.2 Shield Frozr and improved thermal design, help maintain better temperatures during long usage sessions.

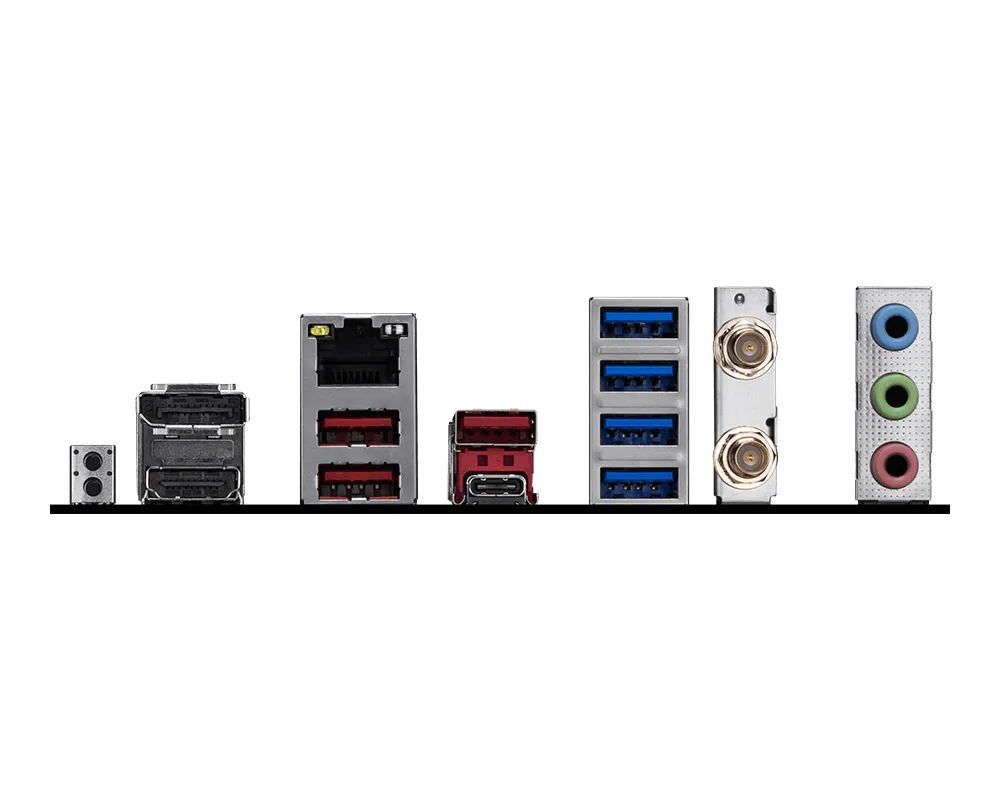

Connectivity is one of its biggest advantages. It includes Wi-Fi 6E, Bluetooth 5.3, and a 2.5G LAN connection for fast and stable internet performance. It also provides multiple USB ports, including USB Type-C, making it easier to connect modern devices and accessories.

The MSI PRO B850-S WIFI6E also includes helpful features such as EZ M.2 Clip II, EZ PCIe Clip II, EZ Debug LED, and Flash BIOS Button. These features make installation and troubleshooting easier, even for users building a PC for the first time. Overall, it is an excellent motherboard for anyone looking for strong performance, future upgrade options, and modern connectivity.

Key Specifications

• Chipset: AMD B850
• CPU Socket: AMD AM5
• Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
• Form Factor: ATX
• Memory: 4 × DDR5 UDIMM Slots
• Maximum Memory: Up to 256GB
• Memory Speed: Up to DDR5 8200+ MT/s (OC)
• Expansion Slots: 2 × PCIe x16, 1 × PCIe x1
• Graphics Slot: PCIe 4.0 x16
• Storage: 1 × M.2 PCIe 5.0 x4, 1 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s
• LAN: Realtek 2.5G LAN
• Wireless: Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek ALC897 7.1 Channel HD Audio
• USB: USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Ports
• Power Design: 12+2+1 Duet Rail Power System
• Features: AMD EXPO™, EZ Debug LED, Flash BIOS Button, M.2 Shield Frozr
