Description

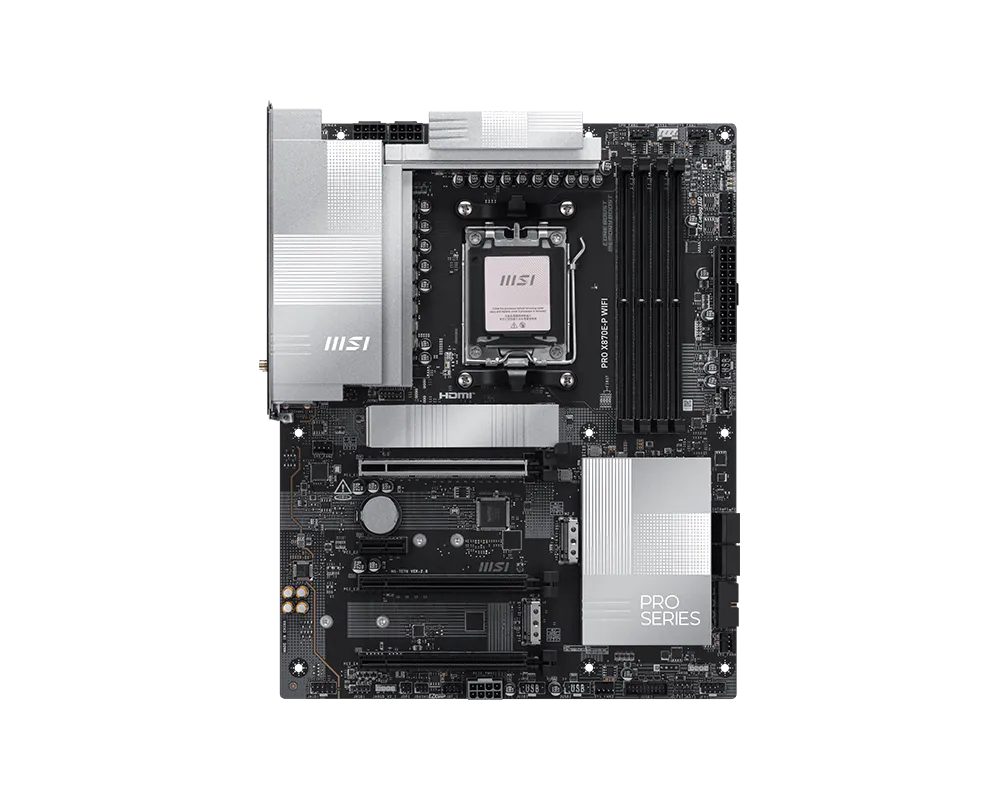

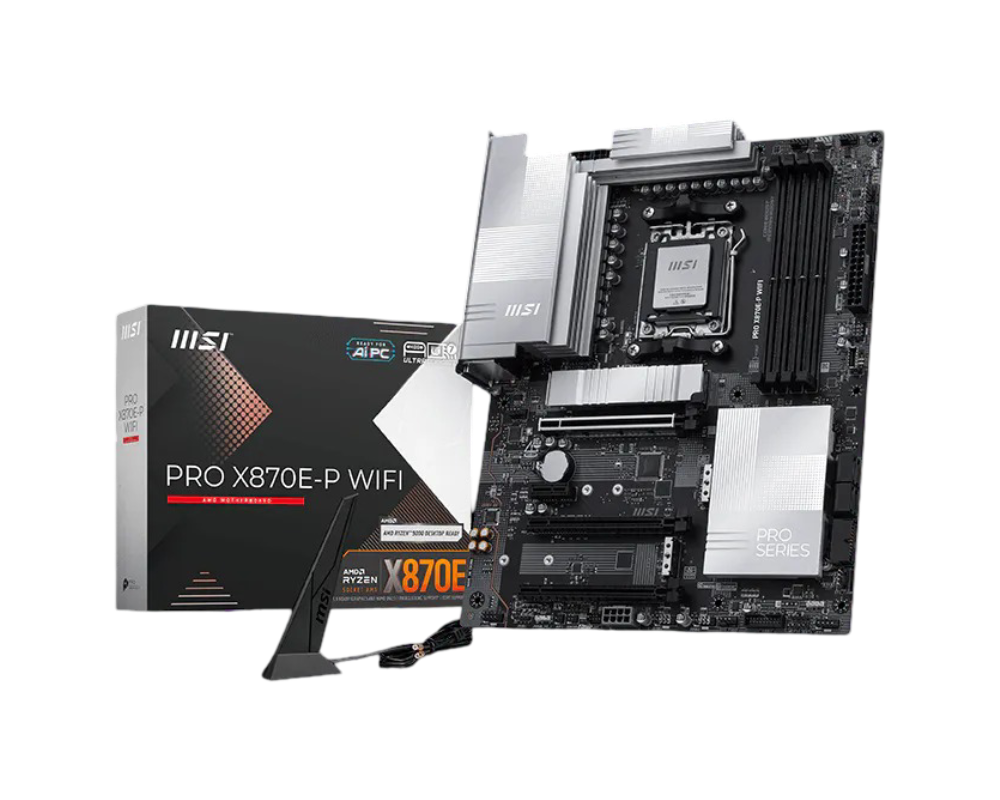

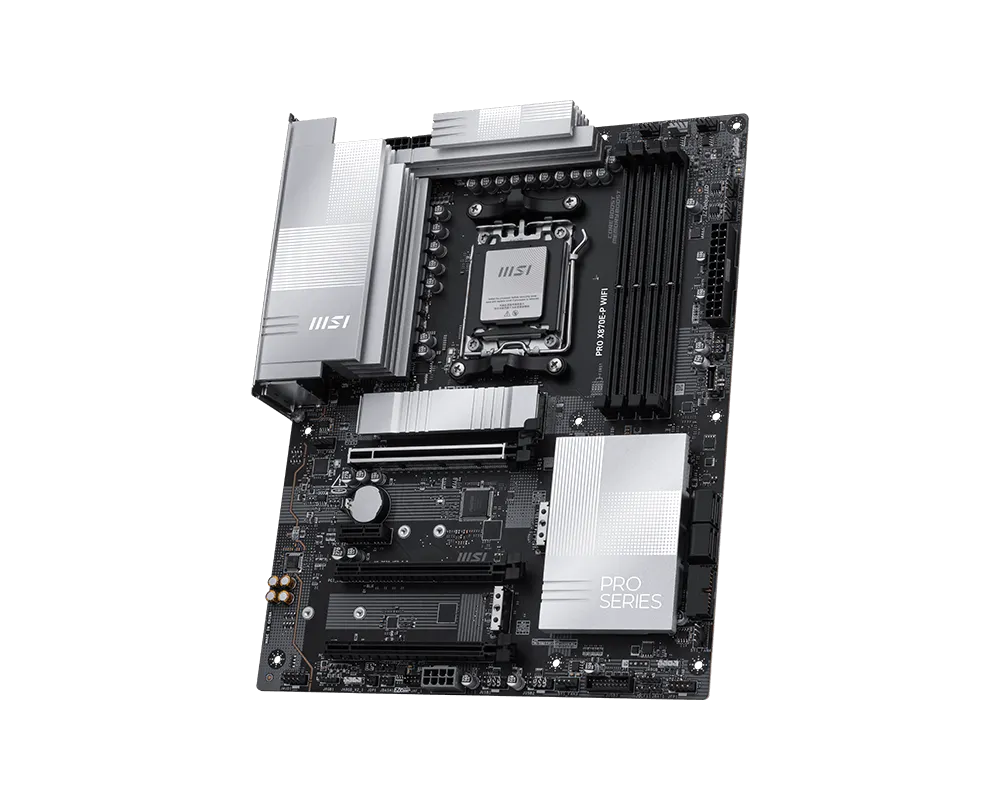

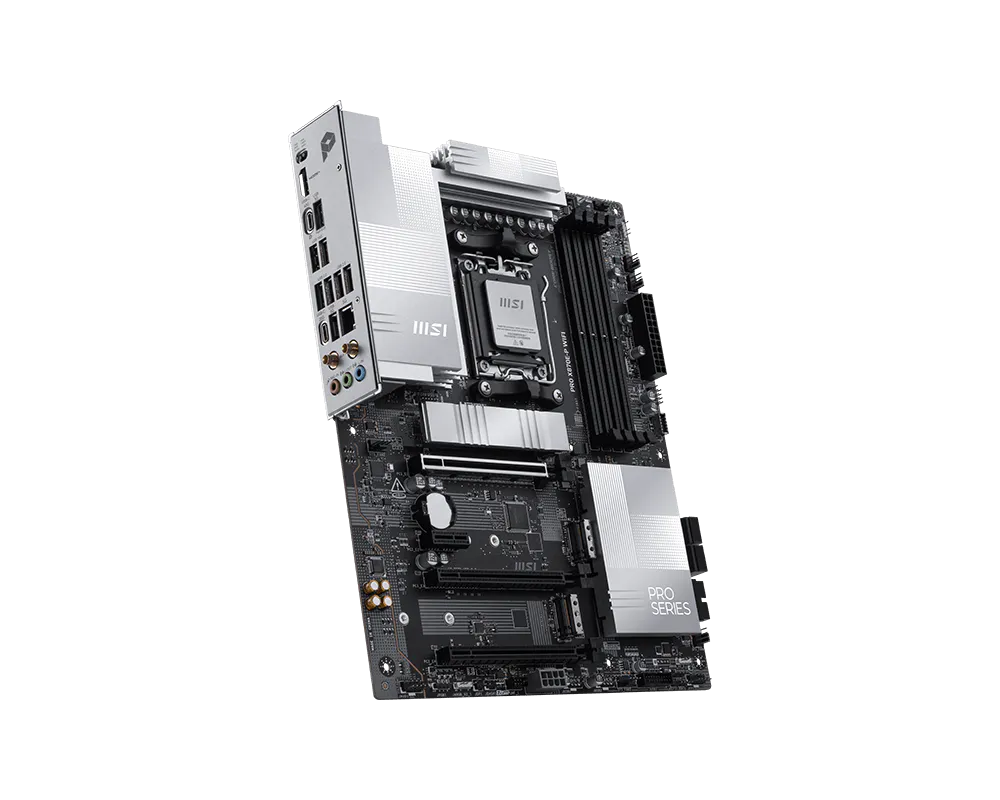

MSI PRO X870E-P WIFI

The MSI PRO X870E-P WIFI is a high-performance AMD motherboard designed for modern gaming PCs, professional workstations, and demanding desktop builds. It combines the latest AM5 platform, DDR5 memory, PCIe 5.0, Wi-Fi 7, and 5G LAN. Therefore, it provides a strong foundation for high-end Ryzen systems.

The motherboard uses the AMD X870E chipset and supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors through the AM5 socket. In addition, four DDR5 memory slots support up to 256GB and speeds up to 8200+ MT/s through overclocking. AMD EXPO support also makes memory tuning easier.

For graphics and expansion, the board includes a reinforced PCIe 5.0 x16 slot for a modern graphics card. It also provides three M.2 slots, including one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots. Furthermore, four SATA 6Gb/s ports provide additional storage options.

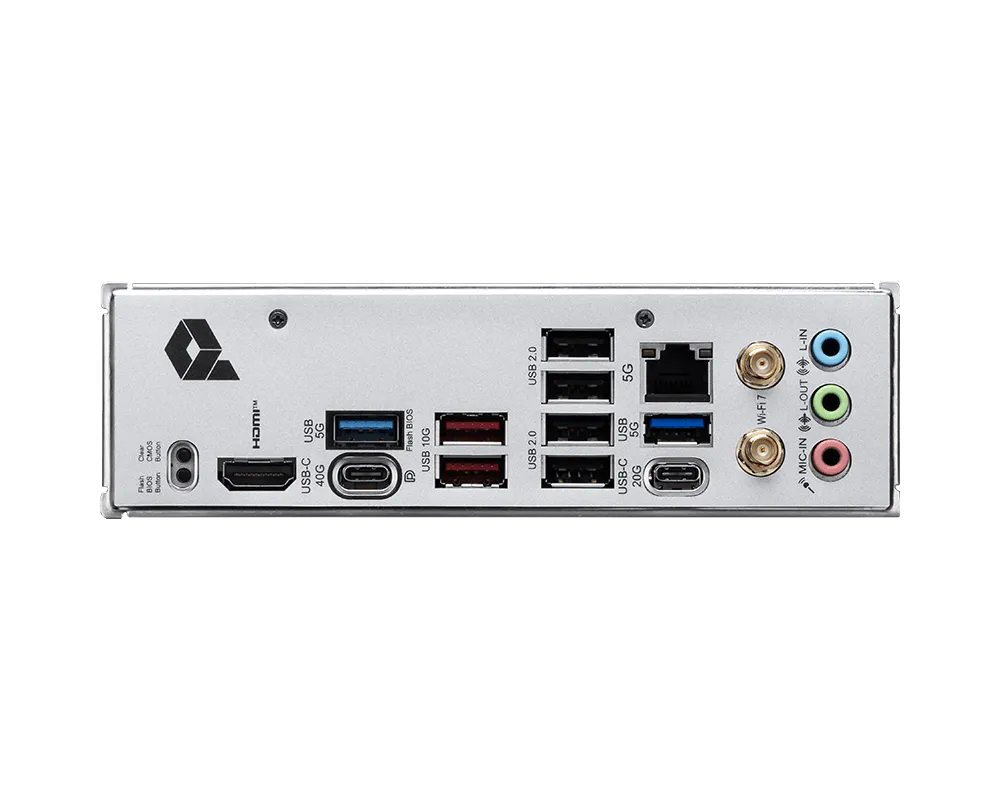

Connectivity is another major strength. The PRO X870E-P WIFI features 5G LAN, Wi-Fi 7, and Bluetooth 5.4. It also includes USB4 with 40Gbps Type-C connectivity, along with additional high-speed USB ports. As a result, the motherboard is ready for fast networking and modern peripherals.

MSI also equips the board with a 14+2+1 digital power design, extended heatsinks, M.2 Shield Frozr II, EZ M.2 Clip II, and EZ PCIe Clip II. These features help provide stable performance while making installation and maintenance easier. Overall, the MSI PRO X870E-P WIFI is an excellent choice for a powerful and future-ready AMD PC.

Key Specifications

• Chipset: AMD X870E
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series
• Socket: AM5
• Memory: 4 × DDR5, up to 256GB, up to 8200+ MT/s (OC)
• Expansion: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1
• Storage: 1 × M.2 PCIe 5.0 x4, 2 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s
• Networking: 5G LAN, Wi-Fi 7, Bluetooth 5.4
• USB: USB4 40Gbps Type-C
• Audio: Realtek ALC897 7.1-Channel HD Audio
• Form Factor: ATX
